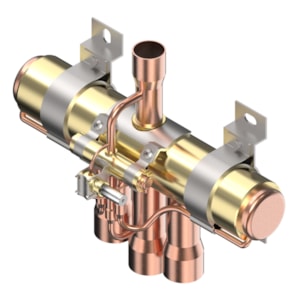

VAN ĐẢO CHIỀU 4 CHIỀU DANFOSS STF-30U3G3 - C/N 061L1328
Product details
|
Gross weight |
6 Kilogram |
|
Net weight |
5.787 Kilogram |
|
Volume |
34.96 Liter |
|
EAN |
5702428531771 |
|
Ambient temperature range [°C] [max] |
55 °C |
|
Ambient temperature range [°C] [min] |
-20 °C |
|
Ambient temperature range [°F] [max] |
131 °F |
|
Ambient temperature range [°F] [min] |
-4 °F |
|
Approval |
CE; VDE; UL |
|
Cap condition 1 [°C] |
0°C sub-cooling; 38°C condensing; 5°C evaporating; 5°C super-heat |
|
Cap condition 2 [°C] |
54,4 °C condensing; 5°C sub-cooling; 5°C super-heat; 7,2°C evaporating |
|
Cap R407C@Δp:0.1bar(cond1)[kW] |
79.01 kW |
|
Cap R407C@Δp:0.1bar(cond2)[kW] |
67.5 kW |
|
Cap R407C@Δp:0.2bar(cond1)[kW] |
111.22 kW |
|
Cap R407C@Δp:0.2bar(cond2)[kW] |
95.05 kW |
|
Cap R410A@Δp:0.1bar(cond1)[kW] |
102.12 kW |
|
Cap R410A@Δp:0.1bar(cond2)[kW] |
88.5 kW |
|
Cap R410A@Δp:0.2bar(cond1)[kW] |
144.03 kW |
|
Cap R410A@Δp:0.2bar(cond2)[kW] |
124.84 kW |
|
CE evaluated |
Yes |
|
China RoHS compliance |
Out of scope |
|
Coil |
No |
|
Contain batteries |
No |
|
Design config. Style |
G |
|
Discharge conn size [in] |
1 1/8 |
|
Discharge conn size [mm] |
28.5 mm |
|
Discharge conn type |
MALE |
|
EU RoHS compliance |
Out of scope |
|
Evap/cond conn size [in] |
1 5/8 |
|
Evap/cond conn size [mm] |
41,7 |
|
Max. Leakage [cm³/min] |
10000 cm³/min |
|
Max. Working Pressure [bar] |
45 bar |
|
MaxOPD [bar] |
31 bar |
|
MaxOPD [psig] |
450 psig |
|
Medium temperature range [°C] [max] |
122 °C |
|
Medium temperature range [°C] [min] |
-20 °C |
|
Medium temperature range [°F] [max] |
252 °F |
|
Medium temperature range [°F] [min] |
-4 °F |
|
MinODP [bar] |
3 bar |
|
MinODP [psi] |
44 psi |
|
Packing format |
Single pack |
|
Process connection material |
Copper |
|
Product group |
4-way reversing valves |
|
Product Name Description |
4-way reversing valve |
|
Quantity per packing format |
1 pc |
|
REACH Candidate List substances |
No |
|
Refrigerants |
R134a; R22; R404A; R407C; R410A |
|
Shock resistance standard |
JIS C 60068-2-27 |
|
Suction conn size [in] |
1 5/8 |
|
Suction conn size [mm] |
41.7 mm |
|
Type |
STF |
|
Type designation |
STF-30U3G3 |
|
UL approval file name |
MH12113 |
|
Vibration stability [m/s²] |
19.6 m/s² |
|
Vibration test standard |
JIS C 60068-2-6 |
