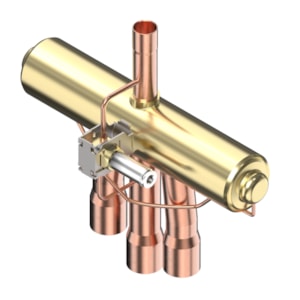

VAN ĐẢO CHIỀU 4 CHIỀU DANFOSS STF-1511G3 - C/N 061L1224

Gross weight

2.45 Kilogram

Net weight

1.55 Kilogram

Volume

19.841 Liter

EAN

5702428273480

Ambient temperature range [°C] [max]

55 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

131 °F

Ambient temperature range [°F] [min]

-4 °F

Approval

CE; VDE

Cap condition 1 [°C]

0°C sub-cooling; 38°C condensing; 5°C evaporating; 5°C super-heat

Cap condition 2 [°C]

54,4 °C condensing; 5°C sub-cooling; 5°C super-heat; 7,2°C evaporating

Cap R407C@Δp:0.1bar(cond1)[kW]

28.91 kW

Cap R407C@Δp:0.1bar(cond2)[kW]

24.7 kW

Cap R407C@Δp:0.2bar(cond1)[kW]

40.69 kW

Cap R407C@Δp:0.2bar(cond2)[kW]

34.78 kW

Cap R410A@Δp:0.1bar(cond1)[kW]

37.37 kW

Cap R410A@Δp:0.1bar(cond2)[kW]

32.38 kW

Cap R410A@Δp:0.2bar(cond1)[kW]

52.7 kW

Cap R410A@Δp:0.2bar(cond2)[kW]

45.68 kW

CE evaluated

Yes

China RoHS compliance

Out of scope

Coil

No

Contain batteries

No

Design config. Style

F

Discharge conn size [in]

7/8

Discharge conn size [mm]

22.5 mm

Discharge conn type

FEMALE

EU RoHS compliance

Out of scope

Evap/cond conn size [in]

1 1/8

Evap/cond conn size [mm]

28,9

Max. Leakage [cm³/min]

6000 cm³/min

Max. Working Pressure [bar]

41.7 bar

MaxOPD [bar]

31 bar

MaxOPD [psig]

450 psig

Medium temperature range [°C] [max]

120 °C

Medium temperature range [°C] [min]

-20 °C

Medium temperature range [°F] [max]

248 °F

Medium temperature range [°F] [min]

-4 °F

MinODP [bar]

3 bar

MinODP [psi]

44 psi

Packing format

Single pack

Process connection material

Copper

Product group

4-way reversing valves

Product Name Description

4-way reversing valve

Quantity per packing format

1 pc

REACH Candidate List substances

No

Refrigerants

R134a; R22; R404A; R407C; R410A

Shock resistance standard

JIS C 60068-2-27

Suction conn size [in]

1 1/8

Suction conn size [mm]

28.9 mm

Type

STF

Type designation

STF-1511G3

Vibration stability [m/s²]

19.6 m/s²

Vibration test standard

JIS C 60068-2-6
