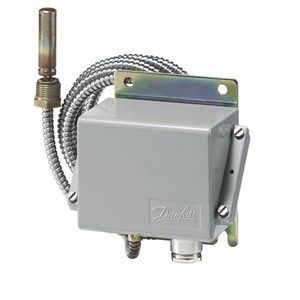

CÔNG TẮC NHIỆT ĐỘ DANFOSS KPS81 60°C-150°C - C/N 060L310666

CHARACTERISTIC

VALUE

TYPE CODE

KPS81

WEIGHT

1.13 Kg

AMBIENT TEMP.

-40 - 70 °C

AMBIENT TEMP.

-40 - 158 °F

APPROVAL

ABS, BV, c UR us recognized, CCC, CCS, CE, DNV, EAC, GL, LR, NKK, RINA, RMRS

ARMORING

Yes

CAP. TUBE LENGTH

78 3/4 in

CAP. TUBE LENGTH

2.000 mm

CHARGE TYPE

Adsorption

CONN. FOR POCKET/HOSE

M 18 x 1.5

CONTACT FUNCTION

SPDT gold

CONTACT RATING

AC1=10 A, 440 V

CONTACT RATING

AC15=4 A, 440 V

CONTACT RATING

AC3=6 A, 440 V

CONTACT RATING

DC13=12 W, 220 V

CONTACT RATING

for gold 1#30mA, 5...30V

DIFF. MIN. RANGE SETTING

5,0 - 25,0 K

DIFF. MIN. RANGE SETTING

5,0 - 25,0 °C

DIFF. TYPE

Adjustable

EAN NO.

5702423147601

ELECTR. CONN. COMMENTS

Metal cable gland

ELECTR. CONN. SIZE

Pg 13.5

ELECTR. SPEC. STANDARD

EN 60947-5

IP67

GLOW LAMP

No

MAX. SENSOR TEMP.

250 °C

MAX. SENSOR TEMP.

482,0 °F

PACK FORMAT

Multi pack

PROD. DESCRIPTION

Temperature Control

PROD. GROUP

Switches and thermostats

PROD. NAME

Thermostat

PACK QTY.

10 PC

ELECTR. CONN. SIZE

Pg 13.5

ELECTR. SPEC. STANDARD

EN 60947-5

IP67

GLOW LAMP

No

MAX. SENSOR TEMP.

250 °C

MAX. SENSOR TEMP.

482,0 °F

PACK FORMAT

Multi pack

PROD. DESCRIPTION

Temperature Control

PROD. GROUP

Switches and thermostats

PROD. NAME

Thermostat

PACK QTY.

10 PC

RESET

AUTO

SENSOR POCKET LENGTH MIN.

3 in

SENS. POCKET LENGTH MIN.

75 mm

SENSOR SIZE (Ø X L)

1/2 x 2 1/2 in

SENSOR SIZE (Ø X L)

13 x 63 mm

SENSOR TYPE

Remote Sensor w.armoured tube

TEMP. RANGE

60 - 150 °C

TEMP. RANGE

140 - 302 °F

UL APPROVAL FILE NAME

E73170
