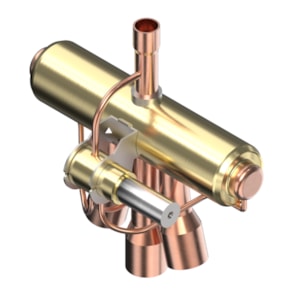

VAN ĐÁO CHIỀU 4 CHIỀU DANFOSS STF-02U1G3 - C/N 061L1210

Gross weight

0.425 Kilogram

Net weight

0.404 Kilogram

Volume

1.787 Liter

EAN

5702428273558

Ambient temperature range [°C] [max]

55 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

131 °F

Ambient temperature range [°F] [min]

-4 °F

Approval

c UL us; CE; UL

Cap condition 1 [°C]

0°C sub-cooling; 38°C condensing; 5°C evaporating; 5°C super-heat

Cap condition 2 [°C]

54,4 °C condensing; 5°C sub-cooling; 5°C super-heat; 7,2°C evaporating

Cap R407C@Δp:0.1bar(cond1)[kW]

6.9 kW

Cap R407C@Δp:0.1bar(cond2)[kW]

5.89 kW

Cap R407C@Δp:0.2bar(cond1)[kW]

9.71 kW

Cap R407C@Δp:0.2bar(cond2)[kW]

8.3 kW

Cap R410A@Δp:0.1bar(cond1)[kW]

8.92 kW

Cap R410A@Δp:0.1bar(cond2)[kW]

7.73 kW

Cap R410A@Δp:0.2bar(cond1)[kW]

12.58 kW

Cap R410A@Δp:0.2bar(cond2)[kW]

10.9 kW

CE evaluated

Yes

China RoHS compliance

Out of scope

Coil

No

Contain batteries

No

Design config. Style

A

Discharge conn size [in]

3/8

Discharge conn size [mm]

9.7 mm

Discharge conn type

FEMALE

EU RoHS compliance

Out of scope

Evap/cond conn size [in]

1/2

Evap/cond conn size [mm]

12,95

Max. Leakage [cm³/min]

1500 cm³/min

Max. Working Pressure [bar]

41.5 bar

MaxOPD [bar]

31 bar

MaxOPD [psig]

450 psig

Medium temperature range [°C] [max]

120 °C

Medium temperature range [°C] [min]

-20 °C

Medium temperature range [°F] [max]

248 °F

Medium temperature range [°F] [min]

-4 °F

MinODP [bar]

3 bar

MinODP [psi]

44 psi

Packing format

Industrial pack

Process connection material

Copper

Product group

4-way reversing valves

Product Name Description

4-way reversing valve

Quantity per packing format

32 pc

REACH Candidate List substances

No

Refrigerants

R134a; R22; R404A; R407C; R410A

Shock resistance standard

JIS C 60068-2-27

Suction conn size [in]

1/2

Suction conn size [mm]

12.95 mm

Type

STF

Type designation

STF-02U1G3

UL approval file name

MH12113

UL approved refrigerants

R134a; R22; R404A; R407C; R410A

UL evaluated

Yes

Vibration stability [m/s²]

19.6 m/s²

Vibration test standard

JIS C 60068-2-6
