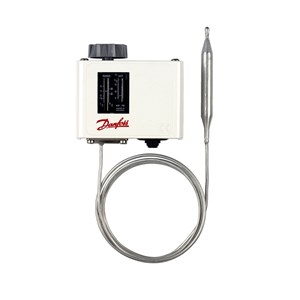

CÔNG TẮC NHIỆT ĐỘ DANFOSS KP79 - C/N 060L112666

Mã sản phẩm: 060L112666

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CÔNG TẮC NHIỆT ĐỘ DANFOSS KP79 - C/N 060L112666

CHARACTERISTIC	VALUE
TYPE CODE	KP79
WEIGHT	0.379 Kg
AMBIENT TEMP. RANGE	-40 - 65 °C
AMBIENT TEMP. RANGE	-40 - 150 °F
APPROVAL	BV, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2, CCC, CE, DNV, EAC, GL, LVD, PZH, RINA, RMRS, RoHS China
CAP. TUBE LENGTH	78 3/4 in
CAP. TUBE	2.000 mm
CHARGE TYPE	Adsorption
CONTACT FUNCTION	SPDT
CONTACT RATING	AC1=16 A, 400 V
CONTACT RATING	AC15=10 A, 400 V
CONTACT RATING	AC3=16 A, 400 V
CONTACT RATING	DC13=12 W, 220 V
CONTACT RATING	LR=112 A, 400 V
DIFF./MAX. RANGE	5,0 - 15,0 K
DIFF./MAX. RANGE	5,0 - 15,0 °C
DIFF./MIN. RANGE	5,0 - 15,0 K
DIFF./MIN. RANGE	5,0 - 15,0 °C
DIFF. TYPE	Adjustable
EAN NO.	5702423148653
ELECTR. CONN. COMMENTS	Rubber cable gland
ELECTR. CONN. SIZE	6-14 mm
ELECTR. SPEC. STANDARD	EN 60947-5
	IP30
	1
GLOW LAMP	No
MAX. SENSOR TEMP.	150 °C
MAX. SENSOR TEMP.	302,0 °F
PACK FORMAT	Multi pack
DESCRIPT.	Temperature Control
PROD. GROUP	Switches and thermostats
PROD. NAME	Thermostat
PACK QTY.	14 pc
RESET	Auto
SENSOR (DIAMETER X LENGTH)	3/8 x 3 3/8 in
SENSOR (DIAMETER X LENGTH)	9.5 x 85 mm
SENSOR	Remote sensor
TEMP. RANGE	50 - 100 °C
TEMP. RANGE	122 - 212 °F
UL APPROVAL FILE	E31024
UL APPROVAL FILE	MH27572
