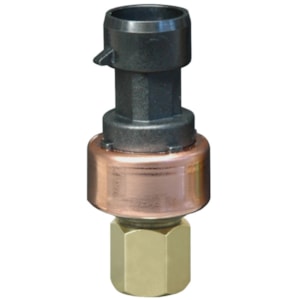

BỘ TRUYỀN ÁP SUẤT DANFOSS NSK, 0 bar - 50 bar - C/N 061H5240

Mã sản phẩm: 061H5240

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

BỘ TRUYỀN ÁP SUẤT DANFOSS NSK, 0 bar - 50 bar - C/N 061H5240

Product details

+ output	Pin 2
+ supply	Pin 1
- common	Pin 3
Accuracy, max. [±FS%]	2.5 %
Ambient temperature range [°C] [max]	100 °C
Ambient temperature range [°C] [min]	-30 °C
CE evaluated	Yes
China RoHS compliance	Out of scope
Contain batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/Female	Female
Electrical connection	Round Packard Metri-Pack
Enclosure rating IP	IP66
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
In scope of WEEE	Yes
Medium temperature range [°C] [max]	120 °C
Medium temperature range [°C] [min]	-30 °C
Output signal	Ratio metric
Overload pressure max. [bar]	55 bar
Packing format	Industrial pack
Pressure connection size	1/4
Pressure connection type	Solder, ODF
Pressure Male/Female	Female
Pressure range [bar] [max]	50 bar
Pressure range [bar] [min]	0 bar
Pressure reference	Gauge (relative)
Product group	Sensors
Product Name Description	Pressure transmitter
Quantity per packing format	100 pc
Ratiometric [V] [max]	4.5 V
Ratiometric [V] [min]	0.5 V
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Trixylyl phosphate (CAS no. 25155-23-1)
Refrigerants	R1234yf R1234ze(E) R134a R32 R404A R407C R407H R410A R449B R450A R452B R454A R454B R454C R455A R513A
SCIP dossier no.	853a606c-7ffe-448f-b453-0d129ce19597
SCIP dossier product name	NSK Series
Specification key	NSK-BE050D-U009
Supply voltage [V] DC	5 V
Supply voltage [V] DC	5 V
Type	NSK
UK RoHS compliance	Out of scope
