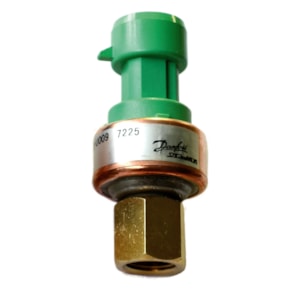

BỘ TRUYỀN ÁP SUẤT DANFOSS NSK, 0 bar - 15 bar - C/N 061H5143

Gross weight

0.076 Kilogram

Net weight

0.075 Kilogram

Volume

0.546 Liter

EAN

5702428274838

+ output

Pin 2

+ supply

Pin 1

- common

Pin 3

Accuracy, max. [±FS%]

2.5 %

Ambient temperature range [°C] [max]

100 °C

Ambient temperature range [°C] [min]

-30 °C

CE evaluated

Yes

China RoHS compliance

Out of scope

Contain batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

Round Packard Metri-Pack

Enclosure rating IP

IP66

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Identical product

061H5150

In scope of WEEE

Yes

Medium temperature range [°C] [max]

135 °C

Medium temperature range [°C] [min]

-40 °C

Output signal

Ratio metric

Overload pressure max. [bar]

38.5 bar

Packing format

Industrial pack

Pressure connection HEX [mm]

14 mm

Pressure connection notes

With Schrader Depressor

Pressure connection size

7/16-20

Pressure connection standard

ASME B1.1

Pressure connection type

UNF

Pressure Male/Female

Female

Pressure range [bar] [max]

15 bar

Pressure range [bar] [min]

0 bar

Pressure reference

Gauge (relative)

Product group

Sensors

Product Name Description

Pressure transmitter

Quantity per packing format

20 pc

Ratiometric [V] [max]

4.5 V

Ratiometric [V] [min]

0.5 V

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Trixylyl phosphate (CAS no. 25155-23-1)

Refrigerants

R1234yf
R1234ze(E)
R134a
R32
R404A
R407C
R407H
R410A
R449B
R450A
R452B
R454A
R454B
R454C
R455A
R513A

SCIP dossier no.

853a606c-7ffe-448f-b453-0d129ce19597

SCIP dossier product name

NSK Series

Specification key

NSK-BE015I-U009

Supply voltage [V] DC

5 V

Supply voltage [V] DC

5 V

Type

NSK

UK RoHS compliance

Out of scope
