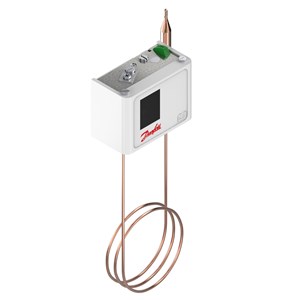

CÔNG TẮC NHIỆT ĐỘ DANFOSS KP73 - C/N 060L111766

CHARACTERISTIC

VALUE

TYPE CODE

KP73

WEIGHT

0.358 Kg

AMBIENT TEMP. RANGE

-40 - 65 °C

AMBIENT TEMP. RANGE

-40 - 150 °F

APPROVAL

BV, c UL us UL873, CS C22.2, CCC, CE, DNV, EAC, GL, LR, LVD, PZH, RINA, RMRS, RoHS China

CAP. TUBE LENGTH

78 3/4 in

CAP. TUBE

2.000 mm

CHARGE TYPE

Adsorption

CONTACT FUNCTION

SPDT

CONTACT RATING

AC1=16 A, 400 V

CONTACT RATING

AC15=10 A, 400 V

CONTACT RATING

AC3=16 A, 400 V

CONTACT RATING

DC13=12 W, 220 V

CONTACT RATING

LR=112 A, 400 V

DIFF./MAX. RANGE

8,0 - 25,0 K

DIFF./MAX. RANGE

8,0 - 25,0 °C

DIFF./MIN. RANGE

12,0 - 70,0 K

DIFF./MIN. RANGE

12,0 - 70,0 °C

DIFF. TYPE

Adjustable

EAN NO.

5702428014861

ELECTR. CONN. COMMENTS

Rubber cable gland

ELECTR. CONN. SIZE

6-14 mm

ELECTR. SPEC. STANDARD

EN 60947-5

IP30

1

GLOW LAMP

No

MAX. SENSOR TEMP.

80 °C

MAX. SENSOR TEMP.

176,0 °F

PACK FORMAT

Multi pack

DESCRIPT.

Temperature Control

PROD. GROUP

Switches and thermostats

PROD. NAME

Thermostat

PACK QTY.

32 pc

RESET

Auto

SENSOR (DIAMETER X LENGTH)

1/4 x 3 3/4 in

SENSOR (DIAMETER X LENGTH)

6.4 x 95 mm

SENSOR

Remote sensor

TEMP. RANGE

-25 - 15 °C

TEMP. RANGE

-13 - 59 °F

UL APPROVAL FILE

E31024
