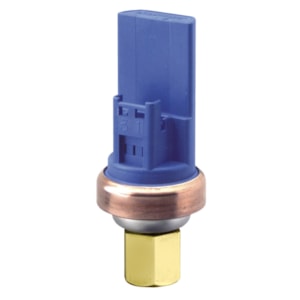

BỘ TRUYỀN ÁP SUẤT DANFOSS XSK, 0 bar - 20 bar - C/N 061H5101

Mã sản phẩm: 061H5101

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

BỘ TRUYỀN ÁP SUẤT DANFOSS XSK, 0 bar - 20 bar - C/N 061H5101

Product details

+ supply	Pin 1
- common	Pin 3
Accuracy, max. [±FS%]	3 %
Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-20 °C
CE evaluated	Yes
China RoHS compliance	Out of scope
Contain batteries	No
Electrical conn. Male/Female	Female
Electrical connection	Molex
Enclosure rating IP	IP66
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Medium temperature range [°C] [max]	70 °C
Medium temperature range [°C] [min]	-20 °C
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	38.5 bar
Packing format	Industrial pack
Pressure connection HEX [mm]	14 mm
Pressure connection notes	With Schrader Depressor
Pressure connection size	7/16-20
Pressure connection standard	ASME B1.1
Pressure connection type	UNF
Pressure Male/Female	Female
Pressure range [bar] [max]	20 bar
Pressure range [bar] [min]	0 bar
Pressure reference	Gauge (relative)
Product group	Sensors
Product Name Description	Pressure transmitter
Quantity per packing format	20 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a; R404A; R407C; R407H; R410A; R449B; R450A; R513A
SCIP dossier no.	336c08aa-a947-4659-835b-4071ea5542ec
SCIP dossier product name	XSK Series
Specification key	XSK-AC20I-U188
Supply voltage [V] DC [max]	28 V
Supply voltage [V] DC [min]	10.5 V
Type	XSK
UK RoHS compliance	Out of scope
