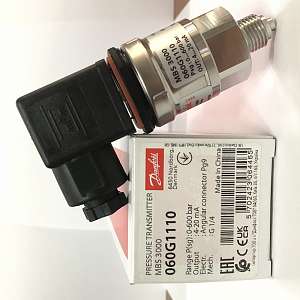

CẢM BIẾN ÁP SUẤT DANFOSS MBS3000 - C/N 060G1110

CHARACTERISTIC

VALUE

TYPE CODE

MBS 3000

WEIGHT

0.161 Kg

- COMMON

PIN 2

+ SUPPLY

PIN 1

ACCURACY (MAX.) ±FS

1,00 %

ACCURACY (TYP.) ±FS

0,5 %

ADJ. ZERO POINT/SPAN

No

AMBIENT TEMP.

-40 - 85 °C

AMBIENT TEMP.

-40 - 185 °F

APPROVAL

ATEX

APPROVAL COMMENTS

ATEX Ex nA IIA T3 Gc

COMPENSATED TEMP. RANGE

0 - 80 °C

COMPENSATED TEMP. RANGE

32 - 176 °F

EAN NO.

5702423064465

ELECTR. CONN. TYPE

Pg 9, EN 175301-803-A, Male and Female

IP65

FLUSH DIAPHR.

No

INTRINS. SAFE

No

MEDIUM TEMP. RANGE

-40 - 85 °C

MEDIUM TEMP. RANGE

-40 - 185 °F

NON-LINEARITY BFSL ±FS [%]

0,50 %

OUTPUT SIGN. TYPE

4 - 20 mA

OVERLOAD PRESS. MAX.

1.500,0 bar

OVERLOAD PRESS. MAX.

21.756 psi

PACK FORMAT

Multi pack

PRESSURE CONN. HEX

27,0

PRESSURE CONN. STD.

EN 837

PRESSURE CONNE. TYPE

G - 1/4 Male

PRESSURE RANGE

0,00 - 600,00 bar

PRESS. UNIT REF.

Gauge (relative)

PROD. GROUP

Sensors

PROD. NAME

Pressure transmitter

PULSE-SNUBBER

No

PACK QTY.

14 PC

RESPONSE TIME MAX.

4 ms

SPEC. KEY

MBS 3000-3811-1AB04

SUPPLY VOLT.

10,00 - 30,00 V
