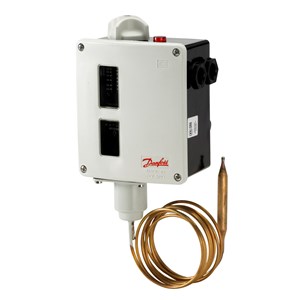

CÔNG TẮC NHIỆT ĐỘ DANFOSS RT120 - C/N 017-521166
Temperature range [°C]: 120 - 215, Reset function: Manual Max, Contact function: SPDT, Sensor type: Remote bulb, Capillary tube length [mm]: 2000, Enclosure rating IP: IP54
Product details
|
Gross weight |
1 Kg |
|
Net weight |
0.888 Kg |
|
Volume |
2.761 Liter |
|
EAN |
5702423120741 |
|
Ambient temperature range [°C] [max] |
70 °C |
|
Ambient temperature range [°C] [min] |
-50 °C |
|
Ambient temperature range [°F] [max] |
158 °F |
|
Ambient temperature range [°F] [min] |
-58 °F |
|
Approval |
CCC ; CE ; CMIM ; DNV ; EAC ; GL ; LLC CDC EURO-TYSK ; LVD ; NKK ; PZH ; RMRS ; RoHS ; RoHS China ; TYSK ; UKCA |
|
Cap. tube length fraction [in] |
78 3/4 in |
|
Capillary tube length [mm] |
2000 mm |
|
Charge type |
Partial |
|
China RoHS compliance |
Yes |
|
Contact function |
SPDT |
|
Contact rating |
AC15=3 A, 400 V; AC1=10 A, 400 V; AC3=4 A, 400 V; DC13=12 W, 220 V; LR=28 A, 400 V |
|
Diff. @ Max. range setting[°C] |
1.8 °C |
|
Diff. @ Min. range setting[°C] |
7 °C |
|
Differential type |
Fixed |
|
Electrical conn. Male/Female |
Female |
|
Electrical connection |
Screwed cable entry |
|
Electrical connection size |
2xPg 13.5 |
|
Electrical connection standard |
DIN 40430 |
|
Electrical spec. standard |
EN 60947-4/-5 |
|
EN 60947 electrical properties |
Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 10A |
|
EN 60947 wiring properties |
Flex, ferrules: 0.2-1.5 mm2 |
|
Enclosure rating IP |
IP54 |
|
Equipment |
Glow lamp |
|
EU RoHS compliance |
Yes |
|
EU RoHS exemption clause |
No |
|
In scope of WEEE and contain batteries |
No |
|
Max. sensor temperature [°C] |
260 °C |
|
Max. sensor temperature [°F] |
500 °F |
|
Packing format |
Multi pack |
|
Product accessories |
Switches accessories |
|
Product description |
Thermostat |
|
Product group |
Switches and thermostats |
|
Product Name Description |
Thermostat |
|
Quantity per packing format |
15 pc |
|
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
|
Reset function |
Manual Max |
|
SCIP dossier no. |
c4c20ce6-4a07-4caa-9394-1e7d8b13ffec |
|
Sensor size (Ø x L) [in] |
3/8 x 3 1/8 in |
|
Sensor size (Ø x L) [mm] |
9.5 x 80 mm |
|
Sensor type |
Remote bulb |
|
Serviceable |
Contact systems |
|
Temperature range [°C] [max] |
215 °C |
|
Temperature range [°C] [min] |
120 °C |
|
Temperature range [°F] [max] |
419 °F |
|
Temperature range [°F] [min] |
248 °F |
|
Type |
RT120 |
|
UK RoHS compliance |
Yes |
