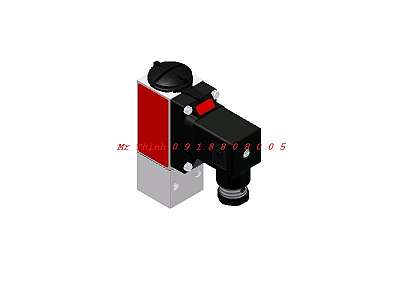

CÔNG TẮC ÁP SUẤT DANFOSS MBC 5100 - C/N 061B100566
CHARACTERISTIC |
VALUE |
TYPE CODE |
MBC 5100 |
WEIGHT |
0.258 Kg |
AMBIENT TEMP. |
-10 - 85 °C |
AMBIENT TEMP. |
14 - 185 °F |
APPROVAL |
ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK |
BURST PRESSURE |
300,0 bar |
CONTACT FUNCTION |
SPDT |
CONTACT RATING |
AC15=0.5 A, 250 V |
CONTACT RATING |
DC13=12 W, 125 V |
DIFF. MAX. RANGE SETTING |
7,00 bar |
DIFF. MIN. RANGE SETTING |
2,00 bar |
EAN NO. |
5702423218646 |
ELECTR. CONN. MALE/FEMALE |
Female |
ELECTR. CONN. |
EN 175301-803-A Pg 11 |
ELECTR. SPEC. STANDARD |
EN 60947-5 |
|
IP65 |
MAX. TEST PRESSURE |
150,0 bar |
|
2.176 psig |
MAX. WORKING PRESSURE |
150,0 bar |
MAX. WORKING PRESSURE |
2.175 psig |
PACK FORMAT |
Multi pack |
PRESSURE CONN. NOTES |
With flange |
PRESSURE CONN. STD. |
ISO 228-1 |
PRESSURE CONNE. TYPE |
G - 1/4 Female |
PRESSURE RANGE CAT. |
High pressure |
PRESSURE SENSING ELEM. |
Diaphragm |
PROD. DESCRIPTION |
Pressure Control |
PROD. GROUP |
Switches and thermostats |
PROD. NAME |
Pressure switch |
PACK QTY. |
32 PC |
REGUL. RANGE |
5,00 - 40,00 bar |
REGUL. RANGE |
0,50 - 4,00 MPa |
RESET |
AUTO |
SPEC. KEY |
3641-1DB04 |
