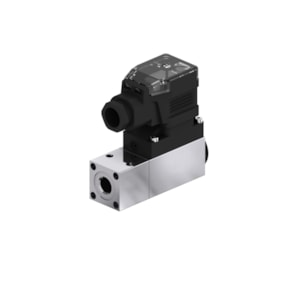

CÔNG TẮC ÁP SUẤT DANFOSS MBC 5100 - C/N 061B000266

CHARACTERISTIC

VALUE

TYPE CODE

MBC 5100

WEIGHT

0.250 Kg

AMBIENT TEMP.

-40 - 85 °C

AMBIENT TEMP.

-40 - 185 °F

APPROVAL

ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK

BURST PRESSURE

30,0 bar

CONTACT FUNCTION

SPDT

CONTACT RATING

AC15=0.5 A, 250 V

CONTACT RATING

DC13=12 W, 125 V

DIFF. MAX. RANGE SETTING

0,60 bar

DIFF. MIN. RANGE SETTING

0,40 bar

EAN NO.

5702423218486

ELECTR. CONN. MALE/FEMALE

Female

ELECTR. CONN.

EN 175301-803-A Pg 11

ELECTR. SPEC. STANDARD

EN 60947-5

IP65

MAX. TEST PRESSURE

15,0 bar

218 psig

MAX. WORKING PRESSURE

15,0 bar

MAX. WORKING PRESSURE

220 psig

PACK FORMAT

Multi pack

PRESSURE CONN. NOTES

With flange

PRESSURE CONN. STD.

ISO 228-1

PRESSURE CONNE. TYPE

G - 1/4 Female

PRESSURE RANGE CAT.

Low pressure

PRESSURE SENSING ELEM.

Bellows

PROD. DESCRIPTION

Pressure Control

PROD. GROUP

Switches and thermostats

PACK QTY.

32 PC

REGUL. RANGE

-0,20 - 10,00 bar

REGUL. RANGE

-0,02 - 1,00 MPa

SPEC. KEY

1411-1DB04
