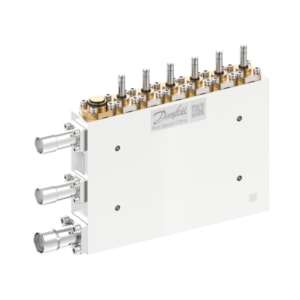

R744, Multi ejectors, CTM 6, LP 1935 - C/N 032F5679

Gross weight

12.202 Kilogram

Net weight

9.4 Kilogram

Volume

12.788 Liter

EAN

5702428997676

Ambient temperature range [°C] [max]

50 °C

Ambient temperature range [°C] [min]

-10 °C

Ambient temperature range [°F] [max]

122 °F

Ambient temperature range [°F] [min]

-14 °F

Approval

PED; cURus

Body material

Aluminum Alloy

Capacity Mass flow [lb/h]

4266 lb/h

Capacity – Mass flow [kg/h]

1935 kg/h

China RoHS compliance

Out of scope

Conn. A size for brazing [in]

7/8 in

Conn. A size for welding [in]

3/4 in

Conn. A type for brazing

ODF

Conn. C size for brazing [in]

7/8 in

Conn. C size for welding [in]

3/4 in

Conn. C type for brazing

ODF

Conn. E size for brazing [in]

1 1/8 in

Conn. E size for welding [in]

1 in

Conn. E type for brazing

ODF

Connection B function

High pressure inlet measuring

Connection D function

Suction inlet measuring

Connection F function

Receiver outlet measuring

Connection material

Stainless steel

Connector A function

High pressure inlet

Connector C function

Suction inlet

Connector E function

Receiver outlet

Connectors standard

EN 10220

Contain batteries

No

Ejector material

Brass

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(c)

Function

NC

Liquid cap. - Mass flow [lb/h]

0 lb/h

Liquid cap. – Mass flow [kg/h]

0 kg/h

Lubricants compatibility

POE; PAG

Mass flow conditions

R744/1305 psig/95 °F; R744/90 bar/35 °C

Mass flow Ejector 1[kg/h]

60 kg/h

Mass flow Ejector 1[lb/h]

132.3 lb/h

Mass flow Ejector 2 [lb/h]

275.5 lb/h

Mass flow Ejector 2[kg/h]

125 kg/h

Mass flow Ejector 3 [kg/h]

250 kg/h

Mass flow Ejector 3 [lb/h]

551 lb/h

Mass flow Ejector 4 [kg/h]

500 kg/h

Mass flow Ejector 4 [lb/h]

1102 lb/h

Mass flow Ejector 5 [kg/h]

500 kg/h

Mass flow Ejector 5 [lb/h]

1102 lb/h

Mass flow Ejector 6 [kg/h]

500 kg/h

Mass flow Ejector 6 [lb/h]

1102 lb/h

Max. test pressure [bar]

200 bar

Max. test pressure [psig]

2716.6 psig

Max. Working Pressure [bar]

140 bar

Max. Working Pressure [psig]

2030 psig

Max.DeltaP E-C conn. [bar]

20 bar

Max.DeltaP E-C conn. [psig]

290 psi

MaxOPD [bar]

90 bar

MaxOPD [psig]

1221 psig

Media temperature range [°C] [max]

50 °C

Media temperature range [°C] [min]

-10 °C

Media temperature range [°F] [max]

122 °F

Media temperature range [°F] [min]

-14 °F

MinOPD [bar]

0.1 bar

MinOPD [psig]

1.36 psig

Packing format

Single pack

Parts Program name

CTM

Pressure range category

Low pressure

Product group

Multi ejectors

Product Name Description

CTM Low pressure valve

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R744

Rel. Humidity [% RH] [max]

100 %

Rel. Humidity [% RH] [min]

0 %

SCIP dossier no.

06e8a6fa-4afe-4680-81ac-cda616b0214a

SCIP dossier product name

CTM - CO2 Multi Ejector - P1

Serviceable

Multi ejector spare parts

Type

CTM 6

UK RoHS compliance

Out of scope

UL approved refrigerants

R744

UL evaluated

Yes
