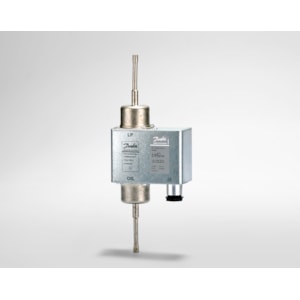

CÔNG TẮC ÁP SUẤT DANFOSS MP55E - C/N 060B530066

Gross weight

0.702 Kilogram

Net weight

0.622 Kilogram

Volume

2.14 Liter

EAN

5702428039604

Adjustment

Cut out for falling pressure

Amb. Temp. Note

Bellows max 100 °C/212 °F

Ambient temperature range [°C] [max]

40 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

104 °F

Ambient temperature range [°F] [min]

-4 °F

Approval

ATEX - Cat. 3 - Zone 2
CCC
CE
EAC
LLC CDC EURO-TYSK
RoHS
RoHS China
TYSK
UKCA

CE evaluated

Yes

China RoHS compliance

Out of scope

Contact differential [bar]

0.2 bar

Contact function

SPDT gold

Contact rating

Ci=0.5 nF; Ii=0.1 A; Li=0.2 μH; Pi=1 W; Ui=30 V

Contain batteries

No

Diff.press.setting range [bar] [max]

4.5 bar

Diff.press.setting range [bar] [min]

0.3 bar

Diff.press.setting range [MPa] [max]

0.45 MPa

Diff.press.setting range [MPa] [min]

0.03 MPa

Diff.press.setting range [psi] [max]

65 psi

Diff.press.setting range [psi] [min]

4.3 psi

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

EN 60947 electrical properties

Insulation: 250V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 2A

EN 60947 wiring properties

Flex, ferrules: 0.2-1.0 mm2
Flex, no ferrules: 0.2-1.5 mm2
Solid/stranded: 0.2-1.5 mm2

Enclosure rating IP

IP20

EU RoHS compliance

Out of scope

EX Sales text

-20C<ta<+60C; II 3G Ex ic IIB T6 Gc

Factory setting [bar]

0.65 bar

Factory setting [psig]

9 psig

Max. test pressure [bar] Pe

22 bar

Max. test pressure [psig]

319 psig

Max. Working Pressure [bar]

17 bar

Max. Working Pressure [psig]

245 psig

Operat. range LP side [bar] Pe [max]

12 bar

Operat. range LP side [bar] Pe [min]

-1 bar

Operat. range LP side [psig]Pe [max]

175 psig

Operat. range LP side [psig]Pe [min]

-15 psig

Packing format

Multi pack

Pressure connection size

1/4 in

Pressure connection standard

EN 1254-1

Pressure connection type

Solder, ODF

Pressure Male/Female

Female

Product accessories

Generic accessories

Product description

Diff. Pressure Switch

Product group

Switches and thermostats

Product Name Description

Differential pressure switch

Quantity per packing format

21 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R1270
R290
R32
R422B
R422D
R454A
R454C
R455A
R516A
R600
R600a

Relay release time [s]

0 s

Reset function

Auto

SCIP dossier no.

d6c79256-254f-4a74-9674-fbd37043a658

Serviceable

No

Type

MP55E

UK RoHS compliance

Out of scope

UL approved refrigerants

R422B; R422D; R516A
