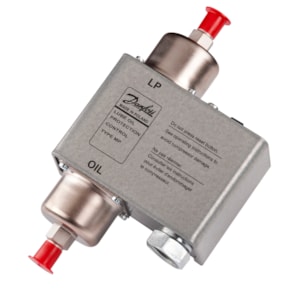

CÔNG TẮC ÁP SUẤT DANFOSS MP54 - C/N 060B205366

Gross weight

0.88 Kilogram

Net weight

0.795 Kilogram

Volume

1.972 Liter

EAN

5702428365949

Adjustment

Cut out for falling pressure

Amb. Temp. Note

Bellows max 100 °C/212 °F

Ambient temperature range [°C] [max]

60 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

140 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CCC ; CE ; CMIM ; EAC ; GL ; LLC CDC EURO-TYSK ; LVD ; RoHS ; RoHS China ; TYSK ; UKCA ; c UL us UL873, CS C22.2

Approval file name

E31024

Cap. tube length fraction [in]

36 in

Capillary tube length [mm]

900 mm

CE evaluated

Yes

China RoHS compliance

Yes

Contact differential [bar]

0.2 bar

Contact function

SPDT

Contact rating

AC=2 A, 250 V; DC=0.2 A, 240 V

Contain batteries

No

Electrical conn. Male/Female

Female

Electrical connection

Swivel cable connector

Electrical connection size

NPSM 1/2 - 14

Electrical connection standard

ANSI/ASME B1.20.1

EN 60947 electrical properties

Insulation: 250V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 2A

EN 60947 wiring properties

Flex, ferrules: 0.2-1.0 mm2; Flex, no ferrules: 0.2-1.5 mm2; Solid/stranded: 0.2-1.5 mm2

Enclosure rating IP

IP20

Equipment

Thermal time relay

EU RoHS compliance

Out of scope

Fixed Differential [bar]

0.65 bar

Fixed Differential [psi]

9 psi

Max. test pressure [bar] Pe

22 bar

Max. test pressure [psig]

319 psig

Max. Working Pressure [bar]

17 bar

Max. Working Pressure [psig]

245 psig

Operat. range LP side [bar] Pe [max]

12 bar

Operat. range LP side [bar] Pe [min]

-1 bar

Operat. range LP side [psig]Pe [max]

175 psig

Operat. range LP side [psig]Pe [min]

-15 psig

Packing format

Multi pack

Pressure connection size

1/4 in

Pressure connection standard

DIN 8912

Pressure connection type

Flare nut

Pressure Male/Female

Female

Product accessories

Generic accessories

Product description

Diff. Pressure Switch

Product group

Switches and thermostats

Product Name Description

Differential pressure switch

Quantity per packing format

21 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R11
R113
R12
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507C
R513A
R515B

Relay release time [s]

120 s

Reset function

Manual Min

SCIP dossier no.

d6c79256-254f-4a74-9674-fbd37043a658

Serviceable

No

Type

MP54

UK RoHS compliance

Out of scope

UL approved refrigerants

R11
R113
R12
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507C
R513A
R515B

UL evaluated

Yes
