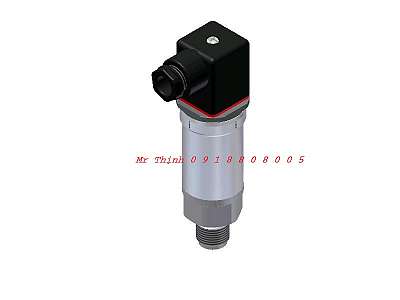

CẢM BIẾN ÁP SUẤT DANFOSS AKS 3000 - C/N 060G3958

CHARACTERISTIC

VALUE

TYPE CODE

AKS 3000

WEIGHT

0.123 Kg

- COMMON

Pin 2

+ SUPPLY

Pin 1

ACCURACY, MAX. ±FS

2,00 %

ACCURACY, TYPICAL ±FS

1,0 %

ADJ. ZERO POINT/SPAN

No

AMBIENT TEMP. RANGE

-40 - 85 °C

AMBIENT TEMP. RANGE

-40 - 185 °F

APPROVAL

ATEX, C UR, CSA, GOST POCC

APPROVAL NOTE

ATEX Ex nA IIA T3 Gc

APPROVAL STD.

6967179

APPROVAL STD.

E227388

APPROVAL STD.

E31024

COMPENSATED TEMP. RANGE

0 - 80 °C

COMPENSATED TEMP. RANGE

32 - 176 °F

EAN NO.

5702423225965

ELECTR. CONN. TYPE

Pg 9, EN 175301-803-A, Male and Female

IP65

FLUSH DIAPHRAGM

No

INTRINS. SAFE

No

MEDIUM TEMP.

-40 - 85 °C

MEDIUM TEMP.

-40 - 185 °F

NON-LINEARITY BFSL ±FS

0,50 %

OUTPUT SIGNAL TYPE

4 - 20 mA

MAX. OVERLOAD PRESS.

55,0 bar

PACK FORMAT

Multi pack

PRESS. CONN. HEX

17,0

PRESS. CONN. NOTE

Flare 1/4"With valve depressor

PRESS. CONN. TYPE

UNF - 7/16-20 Female

PRESS. RANGE

0,00 - 30,00 bar

PRESS. RANGE

0,00 - 435,11 psi

PRESS. UNIT REF.

Gauge (relative)

PROD. GROUP

Sensors

PROD. NAME

Pressure transmitter

PULSE SNUBBER

No

PACK QTY.

20 PC

MAX. RESPONSE TIME

4 ms

SPEC. KEY

AKS 3000

SUPPLY VOLT. DC

10,00 - 30,00 V
