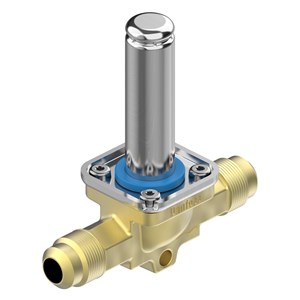

VAN ĐIỆN TỪ DANFOSS EVR 3, Flare, 1/4 in - C/N 032F8107
Sử dụng trong công nghệ lạnh và điều hòa nhiệt độ
Refrigerants: R22/R407C, R404A/R507, R410A, R134a, R407A, R23.
Temperature of medium: –40 - +105°C (10 W / 12 W coil).
Max. 130°C during defrosting.
Min. opening differential pressure, EVR 2-3: 0.0 bar, EVR 6-22: 0.05 bar, EVR 25-32: 0.20 bar.
|
Characteristic |
Value |
|
Type |
EVR 3 |
|
Weight |
0.178 Kg |
|
Actuator system [mm] |
13,5 mm |
|
Ambient temperature [°C] |
-40 - 80 °C |
|
Ambient temperature range [°F] |
-40 - 175 °F |
|
Approval |
GOST R |
|
Coil |
No |
|
Cv value [gal/min] |
0,320 gpm US |
|
Direction |
Straightway |
|
EAN number |
5702428093095 |
|
Function |
N C |
|
Identical product |
032F8108 |
|
Inlet connection type |
Flare |
|
Inlet size [in] |
1/4 IN |
|
Inlet size [mm] |
6,00mm |
|
Kv value [m³/h] |
0,270 m3/h |
|
Manual Operation |
No |
|
Max. Working Pressure [bar] |
45,2 bar |
|
Max. Working Pressure [psig] |
655 psig |
|
Medium temperature range [°C] |
-40 - 105 °C |
|
Medium temperature range [°F] |
-40 - 221 °F |
|
Min. ODP [bar] |
0,000 bar |
|
MOPD [bar/psi] |
Coil Dependend |
|
Orifice size [mm] |
3,30 mm |
|
Outlet connection type |
Flare |
|
Outlet size [in] |
1/4 IN |
|
Outlet size [mm] |
6,00mm |
|
Pack format |
Multi pack |
|
Quantity per pack format |
24 pc |
|
Refrigerant(s) |
R134a |
|
Refrigerant(s) |
R22/R407C |
|
Refrigerant(s) |
R23 |
|
Refrigerant(s) |
R404A/R507 |
|
Refrigerant(s) |
R407A |
|
Refrigerant(s) |
R410A |
|
Type designation |
Solenoid valve |
