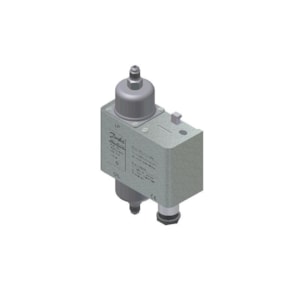

CÔNG TẮC ÁP SUẤT DANFOSS MP55 - C/N 060B017066

Gross weight

0.752 Kilogram

Net weight

0.66 Kilogram

Volume

1.966 Liter

EAN

5702428365505

Adjustment

Cut out for falling pressure

Amb. Temp. Note

Bellows max 100 °C/212 °F

Ambient temperature range [°C] [max]

60 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

140 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CCC
CE
CMIM
EAC
GL
LLC CDC EURO-TYSK
LVD
RINA
RoHS
RoHS China
TYSK

CE evaluated

Yes

China RoHS compliance

Yes

Contact differential [bar]

0.2 bar

Contact function

SPDT

Contact rating

AC15=2 A, 250 V; DC13=0.2 A, 250 V

Contain batteries

No

Diff.press.setting range [bar] [max]

4.5 bar

Diff.press.setting range [bar] [min]

0.3 bar

Diff.press.setting range [MPa] [max]

0.45 MPa

Diff.press.setting range [MPa] [min]

0.03 MPa

Diff.press.setting range [psi] [max]

65 psi

Diff.press.setting range [psi] [min]

4.3 psi

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-5

EN 60947 electrical properties

Insulation: 250V
Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 2A

EN 60947 wiring properties

Flex, ferrules: 0.2-1.0 mm2
Flex, no ferrules: 0.2-1.5 mm2
Solid/stranded: 0.2-1.5 mm2

Enclosure rating IP

IP20

Equipment

Thermal time relay

EU RoHS compliance

Out of scope

Factory setting [bar]

0.65 bar

Factory setting [psig]

9 psig

Max. test pressure [bar] Pe

22 bar

Max. test pressure [psig]

319 psig

Max. Working Pressure [bar]

17 bar

Max. Working Pressure [psig]

245 psig

Operat. range LP side [bar] Pe [max]

12 bar

Operat. range LP side [bar] Pe [min]

-1 bar

Operat. range LP side [psig]Pe [max]

175 psig

Operat. range LP side [psig]Pe [min]

-15 psig

Other RoHS documentation

Saudi Arabia RoHS

Packing format

Multi pack

Pressure connection size

1/4 in

Pressure connection standard

DIN 8906

Pressure connection type

Flare

Pressure Male/Female

Male

Product accessories

Generic accessories

Product description

Diff. Pressure Switch

Product group

Switches and thermostats

Product Name Description

Differential pressure switch

Quantity per packing format

21 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R11
R113
R12
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507C
R513A
R515B

Relay release time [s]

45 s

Reset function

Manual Min

SCIP dossier no.

d6c79256-254f-4a74-9674-fbd37043a658

Serviceable

No

Type

MP55

UK RoHS compliance

Out of scope

UL approved refrigerants

R11
R113
R12
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507C
R513A
R515B
