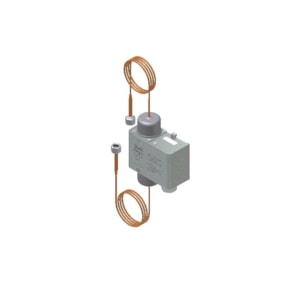

CÔNG TẮC ÁP SUẤT DANFOSS MP55 - C/N 060B013366
Product details
|
Gross weight |
0.84 Kilogram |
|
Net weight |
0.76 Kilogram |
|
Volume |
1.972 Liter |
|
EAN |
5702428365444 |
|
Adjustment |
Cut out for falling pressure |
|
Amb. Temp. Note |
Bellows max 100 °C/212 °F |
|
Ambient temperature range [°C] [max] |
60 °C |
|
Ambient temperature range [°C] [min] |
-40 °C |
|
Ambient temperature range [°F] [max] |
140 °F |
|
Ambient temperature range [°F] [min] |
-40 °F |
|
Approval |
CCC ; CE ; CMIM ; EAC ; GL ; LLC CDC EURO-TYSK ; LVD ; RINA ; RoHS ; RoHS China ; TYSK ; UKCA |
|
Cap. tube length fraction [in] |
39 3/8 in |
|
Capillary tube length [mm] |
1000 mm |
|
CE evaluated |
Yes |
|
China RoHS compliance |
Yes |
|
Contact differential [bar] |
0.2 bar |
|
Contact function |
SPDT |
|
Contact rating |
AC15=2 A, 250 V; DC13=0.2 A, 250 V |
|
Contain batteries |
No |
|
Diff.press.setting range [bar] [max] |
4.5 bar |
|
Diff.press.setting range [bar] [min] |
0.3 bar |
|
Diff.press.setting range [MPa] [max] |
0.45 MPa |
|
Diff.press.setting range [MPa] [min] |
0.03 MPa |
|
Diff.press.setting range [psi] [max] |
65 psi |
|
Diff.press.setting range [psi] [min] |
4.3 psi |
|
Electrical conn. Male/Female |
Female |
|
Electrical connection |
Screwed cable entry |
|
Electrical connection size |
Pg 13.5 |
|
Electrical connection standard |
DIN 40430 |
|
Electrical spec. standard |
EN 60947-5 |
|
EN 60947 electrical properties |
Insulation: 250V ; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 2A |
|
EN 60947 wiring properties |
Flex, ferrules: 0.2-1.0 mm2; Flex, no ferrules: 0.2-1.5 mm2; Solid/stranded: 0.2-1.5 mm2 |
|
Enclosure rating IP |
IP20 |
|
Equipment |
Thermal time relay |
|
EU RoHS compliance |
Out of scope |
|
Factory setting [bar] |
0.65 bar |
|
Factory setting [psig] |
9 psig |
|
Max. test pressure [bar] Pe |
22 bar |
|
Max. test pressure [psig] |
319 psig |
|
Max. Working Pressure [bar] |
17 bar |
|
Max. Working Pressure [psig] |
245 psig |
|
Operat. range LP side [bar] Pe [max] |
12 bar |
|
Operat. range LP side [bar] Pe [min] |
-1 bar |
|
Operat. range LP side [psig]Pe [max] |
175 psig |
|
Operat. range LP side [psig]Pe [min] |
-15 psig |
|
Packing format |
Multi pack |
|
Pressure connection size |
1/4 in |
|
Pressure connection standard |
EN 1254-1 |
|
Pressure connection type |
Solder, ODF |
|
Pressure Male/Female |
Female |
|
Product accessories |
Generic accessories |
|
Product description |
Diff. Pressure Switch |
|
Product group |
Switches and thermostats |
|
Product Name Description |
Differential pressure switch |
|
Quantity per packing format |
21 pc |
|
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
|
Refrigerants |
R11 |
|
Relay release time [s] |
45 s |
|
Reset function |
Manual Min |
|
SCIP dossier no. |
d6c79256-254f-4a74-9674-fbd37043a658 |
|
Serviceable |
No |
|
Type |
MP55 |
|
UK RoHS compliance |
Out of scope |
|
UL approved refrigerants |
R11 |
