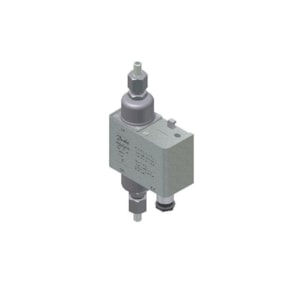

CÔNG TẮC ÁP SUẤT DANFOSS MP55A - C/N 060B017566

CHARACTERISTIC

VALUE

TYPE CODE

MP55A

WEIGHT

0.802 Kg

ADJUSTMENT

Cut out for falling pressure

AMBIENT TEMP. RANGE

-40 - 60 °C

AMBIENT TEMP. RANGE

-40 - 140 °F

AMMONIA APPL.

Yes

APPROVAL

CCC, CE, EAC

CONTACT FUNCTION

SPDT

CONTACT RATING

AC15=2 A, 250 V

CONTACT RATING

DC13=0.2 A, 250 V

DIFF. RANGE

0,30 - 4,50 bar

DIFF. RANGE

0,03 - 0,45 MPa

DIFF. RANGE

4,3 - 65,0 psi

EAN NO.

5702428365567

ELECTRICAL CONN. MALE/FEMALE

Male and Female

ELECTR. CONN. SIZE

PG 13.5

ELECTR. CONN. STANDARD

EN 175301-803-A

IP20

FACT. SETTING

0,65 bar

FACT. SETTING

9,0 psig

GLOW LAMP

No

MAX. TEST PRESSURE

22,0 bar

MWP

17,0 bar

MWP

245 psig

OPERAT. RANGE LP SIDE

-1 - 12 bar

OPERAT. RANGE LP SIDE

-15 - 175 psig

PACK FORMAT

Multi pack

PRESSURE CONN. SIZE

3/8

PRESS. CONN. STD.

ISO 228-1

PRESS. CONN. TYPE

G

PRESSURE MALE/FEMALE

Male

DESCRIPT.

Differential Pressure Control

PROD. GROUP

Switches and thermostats

PROD. NAME

Differential pressure switch

PACK QTY.

21 pc

REFRIGERANT

HCFC/Non flam HFC

REFRIGERANT

R717

RELAY RELEASE TIME

60 s

RESET

Min
