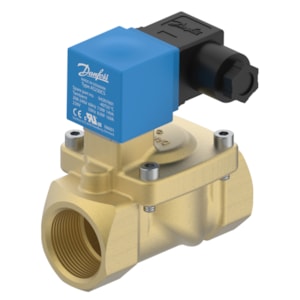

VAN ĐIỆN TỪ DANFOSS EV220S, Function: NC, G, 1, 7.000 m³/h, EPDM - C/N 042U492232

Gross weight

0.956 Kilogram

Net weight

0.908 Kilogram

Volume

1.295 Cubic decimeter

EAN

5715162594520

Actuator

S

Actuator size

9 mm clip-on S

Actuator size [in]

0.35 in

Actuator system [mm]

9 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Application

Open

Approval

CE; UKCA; WRAS; c UL us

Body material

Brass

CE evaluated

Yes

China RoHS compliance

Out of scope

Coil option

Clip-on

Coil type

AS

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1

Connection standard

ISO 228-1

Connection type

G

Contain batteries

No

Cv value [gal/min]

8.1 gal/min

Differential pressure [bar] [max]

10 bar

Differential pressure [bar] [min]

0.3 bar

Differential pressure [psi] [max]

145 psi

Differential pressure [psi] [min]

4.35 psi

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP65

Est. time to close, water [ms]

500 ms

Est. time to open, water [ms]

200 ms

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Frequency [Hz]

50/60 Hz

Function

NC

Kv value [m³/h]

7 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

217.5 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media recommendations

Water & Brine

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

212 °F

Medium temperature range [°F] [min]

-22 °F

Number of ways

2/2

Operation

Servo-operated (diaphragm)

Orifice size [mm]

22 mm

Orifice size fraction [in]

7/8 in

Packing format

Multi pack

Parts Program name

EV220S

Power consumption [W] 50Hz

8 W

Power consumption [W] 60Hz

7 W

Product accessories

Solenoid coil accessories; Solenoid valve accessories

Product group

Solenoid valves

Product Name Description

Solenoid valve

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

5109bece-eeb9-4151-89cf-c63ee268441d

SCIP dossier product name

EV220S

Seal Material

EPDM

Serviceable

No

Specification key

EV220S 22B G 1E NC000 AS230CS

Supply voltage 50Hz Max [V]

230 V

Supply voltage 60Hz Max [V]

240 V

Supply voltage 60Hz Min [V]

208 V

Supply voltage [V] AC

230 V

Type

EV220S

Type designation

EV220S 22

UK RoHS compliance

Out of scope

UL evaluated

Yes
