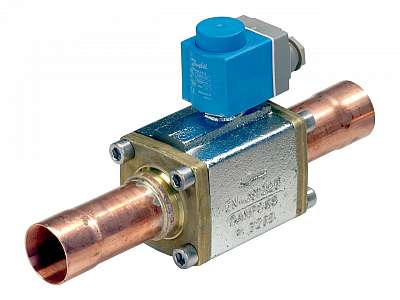

Van điện từ Danfoss EVR 32, có cuộn dây - Mã số: 042H1104
Sử dụng trong công nghệ lạnh và điều hòa nhiệt độ
Refrigerants: R22/R407C, R404A/R507, R410A, R134a, R407A, R23.
Temperature of medium: –40 - +105°C (10 W / 12 W coil).
Max. 130°C during defrosting.
Min. opening differential pressure: 0.20 bar.
|
Characteristic |
Value |
|
Type |
EVR 32 |
|
Weight |
4.42 Kg |
|
Actuator system [mm] |
13,5 mm |
|
Ambient temperature [°C] |
-40 - 80 °C |
|
Ambient temperature range [°F] |
-40 - 175 °F |
|
Approval |
GOST R |
|
Coil |
No |
|
Cv value [gal/min] |
18,500 gpm US |
|
Direction |
Straightway |
|
EAN number |
5702422161547 |
|
Function |
N C |
|
Inlet connection type |
SOLDER, ODF |
|
Inlet size [in] |
1 5/8 in |
|
Kv value [m³/h] |
16,000 m3/h |
|
Manual Operation |
No |
|
Max. Working Pressure [bar] |
32,0 bar |
|
Max. Working Pressure [psig] |
460 psig |
|
Max. OPD, 10 W a.c. [bar] |
21 bar |
|
Max. OPD, 20 W d.c. [bar] |
14 bar |
|
Medium temperature range [°C] |
-40 - 105 °C |
|
Medium temperature range [°F] |
-40 - 221 °F |
|
Min. ODP [bar] |
0,200 bar |
|
Orifice size [mm] |
22,23 mm |
|
Outlet connection type |
SOLDER, ODF |
|
Outlet size [in] |
1 5/8 in |
|
Pack format |
Single pack |
|
Quantity per pack format |
1 PC |
|
Refrigerant(s) |
R134a |
|
Refrigerant(s) |
R22/R407C |
|
Refrigerant(s) |
R23 |
|
Refrigerant(s) |
R404A/R507 |
|
Refrigerant(s) |
R407A |
|
Refrigerant(s) |
R410A |
|
Type designation |
Solenoid valve, Solder |
