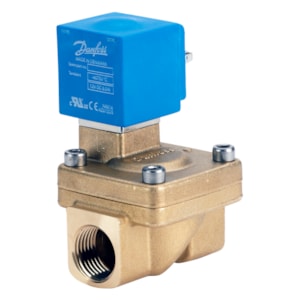

VAN ĐIỆN TỪ DANFOSS EV220W, Function: NC, G, 3/8, 1.600 m³/h, NBR - C/N 042U426102

Gross weight

0.639 Kilogram

Net weight

0.602 Kilogram

Volume

3.684 Liter

EAN

5702428833516

Actuator

W

Actuator size

9 mm clip-on W

Actuator size [in]

0.35 in

Actuator system [mm]

9 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Application

Open

Approval

CE; UKCA

Body material

Brass

CE evaluated

Yes

China RoHS compliance

Out of scope

Coil option

Clip-on

Coil type

AZ

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

3/8

Connection standard

ISO 228-1

Connection type

G

Contain batteries

No

Cv value [gal/min]

1.85 gal/min

Differential pressure [bar] [max]

10 bar

Differential pressure [bar] [min]

0.2 bar

Differential pressure [psi] [max]

145 psi

Differential pressure [psi] [min]

2.9 psi

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP65

Est. time to close, water [ms]

300 ms

Est. time to open, water [ms]

50 ms

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Function

NC

In scope of WEEE

Yes

Kv value [m³/h]

1.6 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

217.5 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media recommendations

Water,Brine,Oil,Air

Media tolerance comments

Neutral media

Medium temperature range [°C] [max]

60 °C

Medium temperature range [°C] [min]

-10 °C

Medium temperature range [°F] [max]

140 °F

Medium temperature range [°F] [min]

14 °F

Number of ways

2/2

Operation

Servo-operated (diaphragm)

Orifice size [mm]

10 mm

Orifice size fraction [in]

3/8 in

Packing format

Multi pack

Parts Program name

EV220W

Power consumption [W] DC

6.5 W

Product accessories

Solenoid coil accessories; Solenoid valve accessories

Product group

Solenoid valves

Product Name Description

Solenoid valve

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

251bcd5a-3b75-4c2a-9b66-d0bbba166a77

Seal Material

NBR

Serviceable

No

Specification key

EV220W 10B G 38N NC000 AS024DS

Supply voltage [V] DC

24 V

Supply voltage [V] DC

24 V

Type

EV220W

Type designation

EV220W 10

UK RoHS compliance

Out of scope
