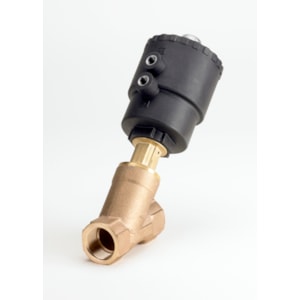

VAN GÓC MỞ RỘNG DANFOSS AV210E, G, 1 1/2, PTFE - C/N 042N4410

Gross weight

6.132 Kilogram

Net weight

5.132 Kilogram

Volume

14.586 Liter

EAN

5702423194322

Ambient temperature range [°C] [max]

60 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

140 °F

Ambient temperature range [°F] [min]

-22 °F

Body material

Bronze

China RoHS compliance

Out of scope

Closing

Against flow

Connection Internal/External

Internal

Connection size [in]

1 1/2

Connection type

G

Contain batteries

No

Control head diameter [mm]

110 mm

Control pressure range [bar] [max]

8 bar

Control pressure range [bar] [min]

4 bar

Control pressure range [psig] [max]

116 psig

Control pressure range [psig] [min]

58 psig

Cv value [gal/min]

53.1 gal/min

Differential pressure [bar] [max]

16 bar

Differential pressure [bar] [min]

0 bar

EEE category

5 small equipment (any external dimension 50 cm)

EU RoHS compliance

Out of scope

Function

NC

In scope of WEEE

Yes

Kv value [m³/h]

46 m³/h

Max. test pressure [bar]

24 bar

Max. test pressure [psig]

348 psig

Max. Working Pressure [bar]

16 bar

Max. Working Pressure [psig]

232 psig

Medium temperature range [°C] [max]

180 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

356 °F

Medium temperature range [°F] [min]

-22 °F

Operation

Piston (angle)

Orifice size [mm]

40 mm

Packing format

Single pack

Product accessories

Ext. operat. valve accessories

Product group

Externally operated valves

Product Name Description

Angle-seat ext operated valve

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

b22a797e-5624-47e4-bc96-fc29cf9f576a

SCIP dossier product name

AV210 bronze

Seal Material

PTFE

Serviceable

Ext. operat. valve spare parts

Type

AV210E

UK RoHS compliance

Out of scope
