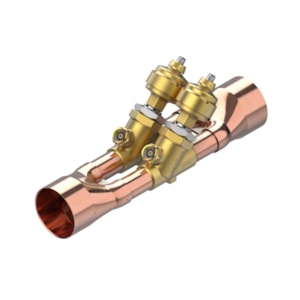

VAN TIẾT LƯU ĐIỆN DANFOSS ETS 800P - C/N 034Z1018

Gross weight

6.3 Kilogram

Net weight

5.4 Kilogram

Volume

9 Liter

EAN

5702428656498

China RoHS compliance

Out of scope

Contain batteries

No

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Inlet connection type

Solder, ODF

Inlet size [in]

3 1/8 in

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

25 bar

Max. Working Pressure [psig]

363 psig

Oil free refrigerants

R1234ze(E); R134a; R513A; R515A; R515B

Outlet connection type

Solder, ODF

Outlet size [in]

3 1/8 in

Packing format

Single pack

Product group

Expansion valves

Product Name Description

Electric expansion valve

Quantity per packing format

1 pc

Rated cap. conditions [IMP]

tcond=90 °F; tevap=40 °F; tliq=82 °F

Rated cap. conditions [SI]

tcond=32 °C; tevap=5 °C; tliq=28 °C

Rated capacity R1234ze(E) [kW]

1760 kW

Rated capacity R1234ze(E) [TR]

501 TR

Rated capacity R134a [kW]

2245 kW

Rated capacity R134a [TR]

640 TR

Rated capacity R513A [kW]

2060 kW

Rated capacity R513A [TR]

587 TR

Refrigerants

R1234ze(E); R134a; R513A; R515A; R515B

Type

ETS 800P

Type designation

Electric exp. valve
