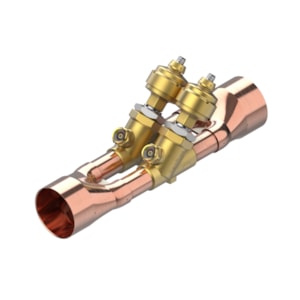

VAN TIẾT LƯU ĐIỆN DANFOSS ETS 500P - C/N 034Z1017

Gross weight

5.586 Kilogram

Net weight

4.6 Kilogram

Volume

9 Liter

EAN

5702428656481

China RoHS compliance

Out of scope

Contain batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Inlet connection type

Solder, ODF

Inlet size [in]

2 5/8 in

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

25 bar

Max. Working Pressure [psig]

363 psig

Oil free refrigerants

R1234ze(E); R134a; R513A; R515A; R515B

Outlet connection type

Solder, ODF

Outlet size [in]

3 1/8 in

Packing format

Single pack

Product group

Expansion valves

Product Name Description

Electric expansion valve

Quantity per packing format

1 pc

Rated cap. conditions [IMP]

tcond=90 °F; tevap=40 °F; tliq=82 °F

Rated cap. conditions [SI]

tcond=32 °C; tevap=5 °C; tliq=28 °C

Rated capacity R1234ze(E) [kW]

1289 kW

Rated capacity R1234ze(E) [TR]

367 TR

Rated capacity R134a [kW]

1652 kW

Rated capacity R134a [TR]

471 TR

Rated capacity R513A [kW]

1518 kW

Rated capacity R513A [TR]

433 TR

Refrigerants

R1234yf; R290; R32; R444B; R447A ; R452B; R454A; R454B; R454C; R455A; R516A; R600a

Type

ETS 500P

Type designation

Electric exp. valve
