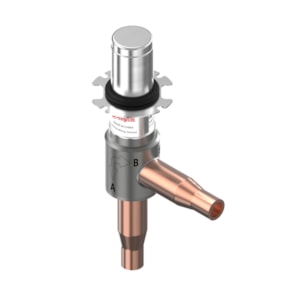

VAN TIẾT LƯU ĐIỆN DANFOSS ETS 8M40L - C/N 034G8800

Gross weight

0.216 Kilogram

Net weight

0.146 Kilogram

Volume

0.251 Liter

EAN

5702424595210

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-22 °F

Approval

UR; cURus

China RoHS compliance

Yes

Connection material

Cu-plated SS

Connection type

Solder, ODM

Contain batteries

No

Design config. Style

L

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flow characteristic

Linear

Flow direction

Bi-flow

Inlet size [in]

3/8 in

Lubricants compatibility

POE; PVE

Max. Working Pressure [bar]

49 bar

Max. Working Pressure [psig]

711 psig

MaxOPD [bar]

39 bar

MaxOPD [psig]

566 psig

MaxOPD reverse [bar]

32 bar

MaxOPD reverse [psi]

497.1 psi

Min. Leakage [cm³/min] @ 1 Mpa

800 cm³/min

Motor type

Permanent magnet stepper motor

Orifice size [mm]

4 mm

Outlet size [in]

3/8 in

Packing format

Multi pack

Parts Program name

ETS 8M

PED category

Art. 4, par. 3

Product group

Expansion valves

Product Name Description

Electric expansion valve

Quantity per packing format

12 pc

Rated cap. conditions [SI]

Tc=38°C; Te=5°C; Tl=34°C

Rated capacity R410A [kW]

60 kW

Rated capacity R410A [TR]

17 TR

Refrigerant temperature [ºC] [max]

70 °C

Refrigerant temperature [ºC] [min]

-30 °C

Refrigerant temperature [ºF] [max]

158 °F

Refrigerant temperature [ºF] [min]

-22 °F

Refrigerants

R1234ze(E)
R134a
R290
R32
R404A
R407C
R410A
R448A
R449A
R449B
R452A
R452B
R454B
R454C
R513A
R515B

Relative humidity (RH) [%] [max]

95 %

Relative humidity (RH) [%] [min]

0 %

Serviceable

No

Step mode

1-2 excitation (half step)

Storage temperature range [°C] [max]

60 °C

Storage temperature range [°C] [min]

-30 °C

Storage temperature range [°F] [max]

140 °F

Storage temperature range [°F] [min]

-22 °F

Total steps

500 (half steps)

Type

ETS 8M40L

UL evaluated

Yes

Valve open pulses@normal flow

37 ± 15 steps

Valve open pulses@reverse flow

37 ± 15 steps
