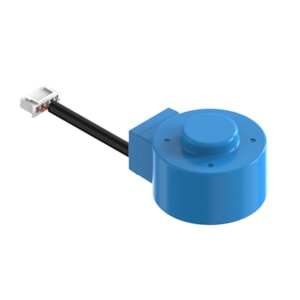

CUỘN VAN TIẾT LƯU ĐIỆN DANFOSS ETS 8M - C/N 034G8305

Gross weight

0.317 Kilogram

Net weight

0.287 Kilogram

Volume

0.495 Liter

EAN

5702424595227

Approval

cURus

Cable length [in]

236.2 in

Cable length [m]

6 m

China RoHS compliance

Out of scope

Class of Insulation

B

Coil resistance [Ohm]

46

Contain batteries

No

Current range [A]

0.26 A

Electrical connector

JST XHP-6

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a)

Motor type

Uni-polar

Packing format

Multi pack

Parts Program name

ETS 8M

Power consumption [W]

4.1 W

Product accessories

Stepper valve accessories

Product group

Expansion valves

Product Name Description

Elec. expansion valve coil

Quantity per packing format

12 pc

Serviceable

No

Supply voltage [V] DC

12 V

Supply voltage [V] DC

12 V

Type

ETS 8M

UL evaluated

Yes

Used for product

ETS 8M
