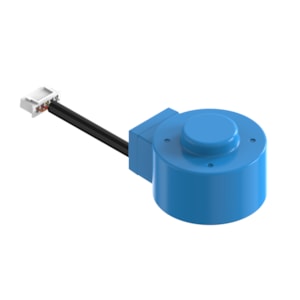

CUỘN VAN TIẾT LƯU ĐIỆN DANFOSS ETS 8M- C/N 034G8301

Gross weight

0.22 Kilogram

Net weight

0.188 Kilogram

Volume

0.495 Liter

EAN

5702424595265

Approval

cURus

Cable length [in]

118.1 in

Cable length [m]

3 m

China RoHS compliance

Out of scope

Class of Insulation

B

Coil resistance [Ohm]

46

Contain batteries

No

Current range [A]

0.26 A

Electrical connector

JST XHP-5

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a)

Motor type

Uni-polar

Packing format

Multi pack

Parts Program name

ETS 8M

Power consumption [W]

4.1 W

Product accessories

Stepper valve accessories

Product group

Expansion valves

Product Name Description

Elec. expansion valve coil

Quantity per packing format

12 pc

REACH Candidate List substances

No

Serviceable

No

Supply voltage [V] DC

12 V

Supply voltage [V] DC

12 V

Type

ETS 8M

UL evaluated

Yes

Used for product

ETS 8M
