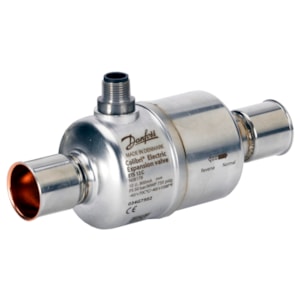

VAN TIẾT LƯU DANFOSS ETS 24C - C/N 034G7901

Gross weight

0.4 Kilogram

Net weight

0.308 Kilogram

Volume

1.651 Liter

EAN

5702428908597

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX; CCC; CE; CMIM; EAC; LLC CDC TYSK; UKCA; UR

Balanced port [Yes/No]

Yes

Body material

Stainless steel

Brand

Colibri

CE evaluated

Yes

China RoHS compliance

Out of scope

Compatible Danfoss controllers

EKE 1A; EKE 1B; EKE 1C; MCX 061V; MCX 152V

Connection material

Bi-metal: Steel/copper

Contain batteries

No

Direction

Straightway

Electrical conn. Male/Female

Male

Electrical connection

M12

Electrical connection size

4 pin

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

EX Sales text

-40 / +70C; II 3G Ex ec IIB T4 Gc

Flow direction

Bi-flow

Flow direction indicator

Laser engraved 2-way arrow

Fluid Group

1

Full travel time speed [s] [max]

6 s

Full travel time speed [s] [min]

3 s

Inlet connection type

Solder ODF

Inlet size [in]

5/8 in

Inlet size [mm]

16 mm

Kv value [m³/h]

1.3 m³/h

Lubricants compatibility

MO; POE

Manual operation option

AST-G service driver

Max allowed duty cycle [%]

100 %

Max tot PowerCons CurrDrive[W]

7.2 W

Max tot PowerCons VoltDrive[W]

7.2 W

Max. Working Pressure [bar]

50 bar

Max. Working Pressure [psig]

725 psig

MaxOPD [bar]

40 bar

MaxOPD [psi]

580 psi

MaxOPD reverse [bar]

40 bar

MaxOPD reverse [psi]

580 psi

Motor type

Bi-polar

Oil free refrigerants

R1234ze(E); R134a; R513A; R515A; R515B; R516A

Operating current max. [A]

0.8 A

Outlet connection type

Solder ODF

Outlet size [in]

5/8 in

Outlet size [mm]

16 mm

Packing format

Multi pack

PED category

Art. 4, par. 3

Phase current (peak) [mA]

800 mA

Phase current (RMS) [mA]

600 mA

Phase inductance [µH]

14000 μH

Product accessories

Stepper valve accessories

Product group

Expansion valves

Product Name Description

Electric expansion valve

Quantity per packing format

12 pc

Rated cap. cond. note

Full stroke open, normal flow

Rated cap. conditions [IMP]

tcond=90 °F; tevap=40 °F; tliq=82 °F

Rated cap. conditions [SI]

tcond=32 °C; tevap=5 °C; tliq=28 °C

Rated cap. R404A/R507A [kW]

85.1 kW

Rated cap. R404A/R507A [TR]

39.7 TR

Rated capacity R134a [kW]

89.3 kW

Rated capacity R134a [TR]

25.7 TR

Rated capacity R22 [kW]

141 kW

Rated capacity R22 [TR]

40.1 TR

Rated capacity R407C [kW]

125 kW

Rated capacity R407C [TR]

35.9 TR

Rated capacity R410A [kW]

138 kW

Rated capacity R410A [TR]

39.7 TR

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerant temperature [ºC] [max]

95 °C

Refrigerant temperature [ºC] [min]

-40 °C

Refrigerant temperature [ºF] [max]

203 °F

Refrigerant temperature [ºF] [min]

-40 °F

Refrigerants

R1233zd(E)
R1234yf
R1234ze(E)
R1270
R134a
R22
R227ea
R23
R245fa
R290
R32
R404A
R407A
R407B
R407C
R407F
R407H
R410A
R412A
R413A
R417A
R422A
R422B
R422D
R427A
R438A
R442A
R444B
R447A
R448A
R449A
R449B
R450A
R452A
R452B
R454A
R454B
R454C
R455A
R463A
R502
R507A
R512A
R513A
R513B
R515A
R515B
R516A
R600
R600a

Resistance [kOhm]

0 kOhm

SCIP dossier no.

1eaabc04-aab4-4b41-bdbf-d6618aa78209

SCIP dossier product name

ETS 12C-100C

Serviceable

No

Sightglass

No

Step mode

2-phase full step; Half step; Microstep (recommended)

Total steps

600 (full steps)

Type

ETS 24C

UL approved refrigerants

R134a
R227ea
R23
R404A
R407A
R407C
R407F
R410A
R417A
R422A
R422D
R427A
R438A
R448A
R449A
R450A
R452A
R507A
R513A
