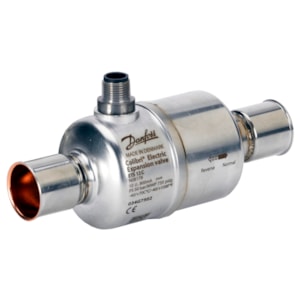

VAN TIẾT LƯU DANFOSS ETS 12C - C/N 034G7500

Gross weight

0.4 Kilogram

Net weight

0.304 Kilogram

Volume

1.651 Liter

EAN

5702428887472

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX; CCC; CE; CMIM; EAC; LLC CDC TYSK; UKCA; UR

Balanced port [Yes/No]

Yes

Body material

Stainless steel

Brand

Colibri

CE evaluated

Yes

China RoHS compliance

Out of scope

Compatible Danfoss controllers

EKE 1A; EKE 1B; EKE 1C; MCX 061V; MCX 152V

Connection material

Bi-metal: Steel/copper

Contain batteries

No

Direction

Straightway

Electrical conn. Male/Female

Male

Electrical connection

M12

Electrical connection size

4 pin

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

EX Sales text

-40 / +70C; II 3G Ex ec IIB T4 Gc

Flow direction

Bi-flow

Flow direction indicator

Laser engraved 2-way arrow

Fluid Group

1

Full travel time speed [s] [max]

6 s

Full travel time speed [s] [min]

3 s

Inlet connection type

Solder ODF

Inlet size [in]

1/2 in

Kv value [m³/h]

0.8 m³/h

Lubricants compatibility

MO; POE

Manual operation option

AST-G service driver

Max allowed duty cycle [%]

100 %

Max tot PowerCons CurrDrive[W]

7.2 W

Max tot PowerCons VoltDrive[W]

7.2 W

Max. Working Pressure [bar]

50 bar

Max. Working Pressure [psig]

725 psig

MaxOPD [bar]

40 bar

MaxOPD [psi]

580 psi

MaxOPD reverse [bar]

40 bar

MaxOPD reverse [psi]

580 psi

Motor type

Bi-polar

Oil free refrigerants

R1234ze(E); R134a; R513A; R515A; R515B; R516A

Operating current max. [A]

0.8 A

Outlet connection type

Solder ODF

Outlet size [in]

1/2 in

Packing format

Multi pack

PED category

Art. 4, par. 3

Phase current (peak) [mA]

800 mA

Phase current (RMS) [mA]

600 mA

Phase inductance [µH]

14000 μH

Product accessories

Stepper valve accessories

Product group

Expansion valves

Product Name Description

Electric expansion valve

Quantity per packing format

12 pc

Rated cap. cond. note

Full stroke open, normal flow

Rated cap. conditions [IMP]

tcond=90 °F; tevap=40 °F; tliq=82 °F

Rated cap. conditions [SI]

tcond=32 °C; tevap=5 °C; tliq=28 °C

Rated cap. R404A/R507A [kW]

56.6 kW

Rated cap. R404A/R507A [TR]

26.4 TR

Rated capacity R134a [kW]

46.8 kW

Rated capacity R134a [TR]

17.1 TR

Rated capacity R22 [kW]

86.6 kW

Rated capacity R22 [TR]

24.6 TR

Rated capacity R407C [kW]

83 kW

Rated capacity R407C [TR]

23.9 TR

Rated capacity R410A [kW]

91.4 kW

Rated capacity R410A [TR]

26.4 TR

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerant temperature [ºC] [max]

95 °C

Refrigerant temperature [ºC] [min]

-40 °C

Refrigerant temperature [ºF] [max]

203 °F

Refrigerant temperature [ºF] [min]

-40 °F

Refrigerants

R1233zd(E); R1234yf; R1234ze(E); R1270; R134a; R22; R227ea; R23; R245fa; R290; R32; R404A; R407A; R407B; R407C; R407F; R407H; R410A; R412A; R413A; R417A; R422A; R422B; R422D; R427A; R438A; R442A; R444B; R447A; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a

Resistance [kOhm]

0 kOhm

SCIP dossier no.

1eaabc04-aab4-4b41-bdbf-d6618aa78209

SCIP dossier product name

ETS 12C-100C

Serviceable

No

Sightglass

No

Step mode

2-phase full step; Half step; Microstep (recommended)

Total steps

600 (full steps)

Type

ETS 12C

UL approved refrigerants

R134a; R227ea; R23; R404A; R407A; R407C; R407F; R410A; R417A; R422A; R422D; R427A; R438A; R448A; R449A; R450A; R452A; R507A; R513A
