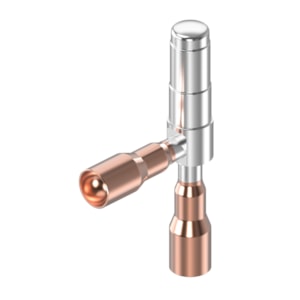

VAN TIẾT LƯU DANFOSS ETS 5M25L - C/N 034G6601

Gross weight

56 Gram

Net weight

39.2 Gram

Volume

0.253 Liter

EAN

5715162663172

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-22 °F

China RoHS compliance

Yes

Compatible Danfoss controllers

EIM 336; EKE 1A; EKE 1B; EKE 1C

Connection material

Cu-plated SS

Connection type

Solder, ODM

Contain batteries

No

Design config. Style

L

EU RoHS compliance

Yes

Flow characteristic

Linear

Flow direction

Bi-flow

Inlet size [in]

1/2 in

Lubricants compatibility

MO; PAG; POE; PVE

Manual operation option

AST-G service driver; Manual coil

Max. Working Pressure [bar]

49 bar

Max. Working Pressure [psig]

710 psig

MaxOPD [bar]

42 bar

MaxOPD [psig]

609 psig

MaxOPD reverse [bar]

42 bar

MaxOPD reverse [psi]

609 psi

Min. Leakage [cm³/min] @ 1 Mpa

500 cm³/min

Motor type

Permanent magnet stepper motor

Orifice size [mm]

2.5 mm

Outlet size [in]

1/2 in

Packing format

Multi pack

Parts Program name

ETS 5M

PED category

Art. 4, par. 3

Product accessories

Electric valve accessories

Product group

Expansion valves

Product Name Description

Electric expansion valve

Quantity per packing format

20 pc

Rated cap. conditions [SI]

Subcooling=0 ºC; Superheat=0 ºC; tcond=38 ºC; tevap=5 ºC

Rated capacity R410A [kW]

23.5 kW

Rated capacity R410A [TR]

6.68 TR

REACH Candidate List substances

No

Refrigerant temperature [ºC] [max]

70 °C

Refrigerant temperature [ºC] [min]

-30 °C

Refrigerant temperature [ºF] [max]

158 °F

Refrigerant temperature [ºF] [min]

-22 °F

Refrigerants

R1234yf; R1234ze(E); R134a; R22; R290; R32; R404A/R507A; R407C; R407H; R410A; R448A; R449A; R449B; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R513A; R515B

Relative humidity (RH) [%] [max]

95 %

Relative humidity (RH) [%] [min]

0 %

Serviceable

No

Step mode

1-2 excitation (half step); 2-2 excitation (full step)

Storage temperature range [°C] [max]

70 °C

Storage temperature range [°C] [min]

-30 °C

Storage temperature range [°F] [max]

158 °F

Storage temperature range [°F] [min]

-22 °F

Total steps

480 (half steps)

Type

ETS 5M25L

Valve open pulses@normal flow

55 ± 16 steps

Valve open pulses@reverse flow

55 ± 16 steps
