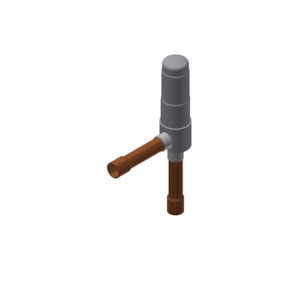

VAN TIẾT LƯU DANFOSS ETS 5M20 - C/N 034G6210

Gross weight

0.042 Kilogram

Net weight

0.035 Kilogram

Volume

245.575 Liter

EAN

5702428680516

Ambient temperature range [°C] [max]

60 °C

Ambient temperature range [°C] [min]

-10 °C

Ambient temperature range [°F] [max]

140 °F

Ambient temperature range [°F] [min]

14 °F

China RoHS compliance

Yes

Compatible Danfoss controllers

EIM 336; EKE 1A; EKE 1B; EKE 1C

Connection material

Cu-plated SS

Connection type

Solder, ODM

Contain batteries

No

Design config. Style

L

EU RoHS compliance

Yes

Flow characteristic

Linear

Flow direction

Bi-flow

Identical product

034G6211

Inlet size [in]

5/16 in

Lubricants compatibility

POE

Manual operation option

AST-G service driver
Manual coil

Max. Working Pressure [bar]

49 bar

Max. Working Pressure [psig]

711 psig

MaxOPD [bar]

35 bar

MaxOPD [psig]

508 psig

MaxOPD reverse [bar]

35 bar

MaxOPD reverse [psi]

508 psi

Min. Leakage [cm³/min] @ 1 Mpa

150 cm³/min

Motor type

Permanent magnet stepper motor

Orifice size [mm]

2 mm

Outlet size [in]

5/16 in

Packing format

Industrial pack

Parts Program name

ETS 5M

PED category

Art. 4, par. 3

Product accessories

Electric valve accessories

Product group

Expansion valves

Product Name Description

Electric expansion valve

Quantity per packing format

40 pc

Rated cap. conditions [SI]

Subcooling=0 ºC; Superheat=0 ºC; tcond=38 ºC; tevap=5 ºC

Rated cap. R404A/R507A [kW]

9.8 kW

Rated cap. R404A/R507A [TR]

2.79 TR

Rated capacity R1234yf [kW]

7.65 kW

Rated capacity R1234yf [TR]

2.18 TR

Rated capacity R1234ze(E) [kW]

7.81 kW

Rated capacity R1234ze(E) [TR]

2.22 TR

Rated capacity R134a [kW]

10.45 kW

Rated capacity R134a [TR]

2.97 TR

Rated capacity R22 [kW]

13.9 kW

Rated capacity R22 [TR]

3.95 TR

Rated capacity R290 [kW]

14.44 kW

Rated capacity R290 [TR]

4.11 TR

Rated capacity R32 [kW]

24.36 kW

Rated capacity R32 [TR]

6.93 TR

Rated capacity R407C [kW]

14.52 kW

Rated capacity R407C [TR]

4.13 TR

Rated capacity R407H [kW]

16.22 kW

Rated capacity R407H [TR]

4.61 TR

Rated capacity R410A [kW]

16.5 kW

Rated capacity R410A [TR]

4.69 TR

Rated capacity R448A [kW]

13.91 kW

Rated capacity R448A [TR]

3.96 TR

Rated capacity R449A [kW]

13.6 kW

Rated capacity R449A [TR]

3.87 TR

Rated capacity R449B [kW]

13.82 kW

Rated capacity R449B [TR]

3.93 TR

Rated capacity R452A [kW]

10.48 kW

Rated capacity R452A [TR]

2.98 TR

Rated capacity R452B [kW]

18.91 kW

Rated capacity R452B [TR]

5.38 TR

Rated capacity R454A [kW]

14.1 kW

Rated capacity R454A [TR]

4.01 TR

Rated capacity R454B [kW]

19.14 kW

Rated capacity R454B [TR]

5.44 TR

Rated capacity R454C [kW]

12.1 kW

Rated capacity R454C [TR]

3.44 TR

Rated capacity R455A [kW]

13.35 kW

Rated capacity R455A [TR]

3.8 TR

Rated capacity R513A [kW]

8.86 kW

Rated capacity R513A [TR]

2.52 TR

Rated capacity R515B [kW]

7.57 kW

Rated capacity R515B [TR]

2.15 TR

REACH Candidate List substances

No

Refrigerant temperature [ºC] [max]

70 °C

Refrigerant temperature [ºC] [min]

-30 °C

Refrigerant temperature [ºF] [max]

158 °F

Refrigerant temperature [ºF] [min]

-22 °F

Refrigerants

R1234yf ; R1234ze(E); R134a; R22; R290; R32; R404A/R507A; R407C; R407H; R410A; R448A; R449A; R449B; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R513A; R515B

Relative humidity (RH) [%] [max]

95 %

Relative humidity (RH) [%] [min]

0 %

Serviceable

No

Step mode

1-2 excitation (half step); 2-2 excitation (full step)

Storage temperature range [°C] [max]

70 °C

Storage temperature range [°C] [min]

-30 °C

Storage temperature range [°F] [max]

158 °F

Storage temperature range [°F] [min]

-22 °F

Total steps

480 (half steps)

Type

ETS 5M20

Valve open pulses@normal flow

55 ± 16 steps

Valve open pulses@reverse flow

15 ± 15 steps
