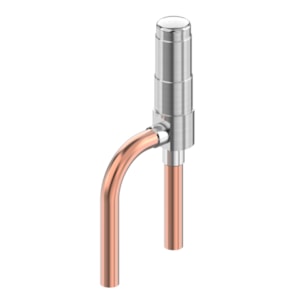

VAN TIẾT LƯU DANFOSS ETS 5M24 - C/N 034G6203
Product details
|
Gross weight |
0.055 Kilogram |
|
Net weight |
0.038 Kilogram |
|
Volume |
0.251 Liter |
|
EAN |
5702428581813 |
|
Ambient temperature range [°C] [max] |
60 °C |
|
Ambient temperature range [°C] [min] |
-10 °C |
|
Ambient temperature range [°F] [max] |
140 °F |
|
Ambient temperature range [°F] [min] |
14 °F |
|
China RoHS compliance |
Yes |
|
Compatible Danfoss controllers |
EIM 336; EKE 1A; EKE 1B; EKE 1C |
|
Connection material |
Cu-plated SS |
|
Connection type |
Solder, ODM |
|
Contain batteries |
No |
|
Design config. Style |
H |
|
EU RoHS compliance |
Yes |
|
Flow characteristic |
Linear |
|
Flow direction |
Bi-flow |
|
Inlet size [in] |
1/4 in |
|
Inlet size [mm] |
6.35 mm |
|
Lubricants compatibility |
POE |
|
Manual operation option |
AST-G service driver |
|
Max. Working Pressure [bar] |
49 bar |
|
Max. Working Pressure [psig] |
711 psig |
|
MaxOPD [bar] |
35 bar |
|
MaxOPD [psig] |
508 psig |
|
MaxOPD reverse [bar] |
35 bar |
|
MaxOPD reverse [psi] |
508 psi |
|
Min. Leakage [cm³/min] @ 1 Mpa |
150 cm³/min |
|
Motor type |
Permanent magnet stepper motor |
|
Orifice size [mm] |
2.4 mm |
|
Outlet size [in] |
1/4 in |
|
Outlet size [mm] |
6.35 mm |
|
Packing format |
Multi pack |
|
Parts Program name |
ETS 5M |
|
PED category |
Art. 4, par. 3 |
|
Product accessories |
Electric valve accessories |
|
Product group |
Expansion valves |
|
Product Name Description |
Electric expansion valve |
|
Quantity per packing format |
20 pc |
|
Rated cap. conditions [SI] |
Subcooling=0 ºC; Superheat=0 ºC; tcond=38 ºC; tevap=5 ºC |
|
Rated cap. R404A/R507A [kW] |
12 kW |
|
Rated cap. R404A/R507A [TR] |
3.41 TR |
|
Rated capacity R1234yf [kW] |
9.31 kW |
|
Rated capacity R1234yf [TR] |
2.65 TR |
|
Rated capacity R1234ze(E) [kW] |
9.58 kW |
|
Rated capacity R1234ze(E) [TR] |
2.72 TR |
|
Rated capacity R134a [kW] |
12.71 kW |
|
Rated capacity R134a [TR] |
3.61 TR |
|
Rated capacity R22 [kW] |
17 kW |
|
Rated capacity R22 [TR] |
4.83 TR |
|
Rated capacity R290 [kW] |
17.64 kW |
|
Rated capacity R290 [TR] |
5.02 TR |
|
Rated capacity R32 [kW] |
29.88 kW |
|
Rated capacity R32 [TR] |
8.5 TR |
|
Rated capacity R407C [kW] |
17.71 kW |
|
Rated capacity R407C [TR] |
5.04 TR |
|
Rated capacity R407H [kW] |
19.79 kW |
|
Rated capacity R407H [TR] |
5.63 TR |
|
Rated capacity R410A [kW] |
20.23 kW |
|
Rated capacity R410A [TR] |
5.75 TR |
|
Rated capacity R448A [kW] |
17 kW |
|
Rated capacity R448A [TR] |
4.83 TR |
|
Rated capacity R449A [kW] |
16.62 kW |
|
Rated capacity R449A [TR] |
4.73 TR |
|
Rated capacity R449B [kW] |
16.9 kW |
|
Rated capacity R449B [TR] |
4.81 TR |
|
Rated capacity R452A [kW] |
12.81 kW |
|
Rated capacity R452A [TR] |
3.64 TR |
|
Rated capacity R452B [kW] |
23.2 kW |
|
Rated capacity R452B [TR] |
6.6 TR |
|
Rated capacity R454A [kW] |
17.25 kW |
|
Rated capacity R454A [TR] |
4.9 TR |
|
Rated capacity R454B [kW] |
23.45 kW |
|
Rated capacity R454B [TR] |
6.67 TR |
|
Rated capacity R454C [kW] |
14.77 kW |
|
Rated capacity R454C [TR] |
4.2 TR |
|
Rated capacity R455A [kW] |
16.3 kW |
|
Rated capacity R455A [TR] |
4.63 TR |
|
Rated capacity R513A [kW] |
10.79 kW |
|
Rated capacity R513A [TR] |
3.07 TR |
|
Rated capacity R515B [kW] |
9.28 kW |
|
Rated capacity R515B [TR] |
2.64 TR |
|
REACH Candidate List substances |
No |
|
Refrigerant temperature [ºC] [max] |
70 °C |
|
Refrigerant temperature [ºC] [min] |
-30 °C |
|
Refrigerant temperature [ºF] [max] |
158 °F |
|
Refrigerant temperature [ºF] [min] |
-22 °F |
|
Refrigerants |
R1234yf ; R1234ze(E); R134a; R22; R290; R32; R404A/R507A; R407C ; R407H; R410A; R448A; R449A; R449B; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R513A; R515B |
|
Relative humidity (RH) [%] [max] |
95 % |
|
Relative humidity (RH) [%] [min] |
0 % |
|
Serviceable |
No |
|
Step mode |
1-2 excitation (half step); 2-2 excitation (full step) |
|
Storage temperature range [°C] [max] |
70 °C |
|
Storage temperature range [°C] [min] |
-30 °C |
|
Storage temperature range [°F] [max] |
158 °F |
|
Storage temperature range [°F] [min] |
-22 °F |
|
Total steps |
480 (half steps) |
|
Type |
ETS 5M24 |
|
Valve open pulses@normal flow |
55 ± 16 steps |
|
Valve open pulses@reverse flow |
15 ± 15 steps |
Product details
|
Gross weight |
0.055 Kilogram |
|
Net weight |
0.038 Kilogram |
|
Volume |
0.251 Liter |
|
EAN |
5702428581813 |
|
Ambient temperature range [°C] [max] |
60 °C |
|
Ambient temperature range [°C] [min] |
-10 °C |
|
Ambient temperature range [°F] [max] |
140 °F |
|
Ambient temperature range [°F] [min] |
14 °F |
|
China RoHS compliance |
Yes |
|
Compatible Danfoss controllers |
EIM 336; EKE 1A; EKE 1B; EKE 1C |
|
Connection material |
Cu-plated SS |
|
Connection type |
Solder, ODM |
|
Contain batteries |
No |
|
Design config. Style |
H |
|
EU RoHS compliance |
Yes |
|
Flow characteristic |
Linear |
|
Flow direction |
Bi-flow |
|
Inlet size [in] |
1/4 in |
|
Inlet size [mm] |
6.35 mm |
|
Lubricants compatibility |
POE |
|
Manual operation option |
AST-G service driver |
|
Max. Working Pressure [bar] |
49 bar |
|
Max. Working Pressure [psig] |
711 psig |
|
MaxOPD [bar] |
35 bar |
|
MaxOPD [psig] |
508 psig |
|
MaxOPD reverse [bar] |
35 bar |
|
MaxOPD reverse [psi] |
508 psi |
|
Min. Leakage [cm³/min] @ 1 Mpa |
150 cm³/min |
|
Motor type |
Permanent magnet stepper motor |
|
Orifice size [mm] |
2.4 mm |
|
Outlet size [in] |
1/4 in |
|
Outlet size [mm] |
6.35 mm |
|
Packing format |
Multi pack |
|
Parts Program name |
ETS 5M |
|
PED category |
Art. 4, par. 3 |
|
Product accessories |
Electric valve accessories |
|
Product group |
Expansion valves |
|
Product Name Description |
Electric expansion valve |
|
Quantity per packing format |
20 pc |
|
Rated cap. conditions [SI] |
Subcooling=0 ºC; Superheat=0 ºC; tcond=38 ºC; tevap=5 ºC |
|
Rated cap. R404A/R507A [kW] |
12 kW |
|
Rated cap. R404A/R507A [TR] |
3.41 TR |
|
Rated capacity R1234yf [kW] |
9.31 kW |
|
Rated capacity R1234yf [TR] |
2.65 TR |
|
Rated capacity R1234ze(E) [kW] |
9.58 kW |
|
Rated capacity R1234ze(E) [TR] |
2.72 TR |
|
Rated capacity R134a [kW] |
12.71 kW |
|
Rated capacity R134a [TR] |
3.61 TR |
|
Rated capacity R22 [kW] |
17 kW |
|
Rated capacity R22 [TR] |
4.83 TR |
|
Rated capacity R290 [kW] |
17.64 kW |
|
Rated capacity R290 [TR] |
5.02 TR |
|
Rated capacity R32 [kW] |
29.88 kW |
|
Rated capacity R32 [TR] |
8.5 TR |
|
Rated capacity R407C [kW] |
17.71 kW |
|
Rated capacity R407C [TR] |
5.04 TR |
|
Rated capacity R407H [kW] |
19.79 kW |
|
Rated capacity R407H [TR] |
5.63 TR |
|
Rated capacity R410A [kW] |
20.23 kW |
|
Rated capacity R410A [TR] |
5.75 TR |
|
Rated capacity R448A [kW] |
17 kW |
|
Rated capacity R448A [TR] |
4.83 TR |
|
Rated capacity R449A [kW] |
16.62 kW |
|
Rated capacity R449A [TR] |
4.73 TR |
|
Rated capacity R449B [kW] |
16.9 kW |
|
Rated capacity R449B [TR] |
4.81 TR |
|
Rated capacity R452A [kW] |
12.81 kW |
|
Rated capacity R452A [TR] |
3.64 TR |
|
Rated capacity R452B [kW] |
23.2 kW |
|
Rated capacity R452B [TR] |
6.6 TR |
|
Rated capacity R454A [kW] |
17.25 kW |
|
Rated capacity R454A [TR] |
4.9 TR |
|
Rated capacity R454B [kW] |
23.45 kW |
|
Rated capacity R454B [TR] |
6.67 TR |
|
Rated capacity R454C [kW] |
14.77 kW |
|
Rated capacity R454C [TR] |
4.2 TR |
|
Rated capacity R455A [kW] |
16.3 kW |
|
Rated capacity R455A [TR] |
4.63 TR |
|
Rated capacity R513A [kW] |
10.79 kW |
|
Rated capacity R513A [TR] |
3.07 TR |
|
Rated capacity R515B [kW] |
9.28 kW |
|
Rated capacity R515B [TR] |
2.64 TR |
|
REACH Candidate List substances |
No |
|
Refrigerant temperature [ºC] [max] |
70 °C |
|
Refrigerant temperature [ºC] [min] |
-30 °C |
|
Refrigerant temperature [ºF] [max] |
158 °F |
|
Refrigerant temperature [ºF] [min] |
-22 °F |
|
Refrigerants |
R1234yf ; R1234ze(E); R134a; R22; R290; R32; R404A/R507A; R407C ; R407H; R410A; R448A; R449A; R449B; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R513A; R515B |
|
Relative humidity (RH) [%] [max] |
95 % |
|
Relative humidity (RH) [%] [min] |
0 % |
|
Serviceable |
No |
|
Step mode |
1-2 excitation (half step); 2-2 excitation (full step) |
|
Storage temperature range [°C] [max] |
70 °C |
|
Storage temperature range [°C] [min] |
-30 °C |
|
Storage temperature range [°F] [max] |
158 °F |
|
Storage temperature range [°F] [min] |
-22 °F |
|
Total steps |
480 (half steps) |
|
Type |
ETS 5M24 |
|
Valve open pulses@normal flow |
55 ± 16 steps |
|
Valve open pulses@reverse flow |
15 ± 15 steps |
