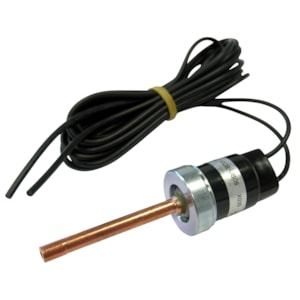

CÔNG TẮC ÁP SUẤT DANFOSS CCB, 110bar, 80bar - C/N 061F9909

Gross weight

0.138 Kilogram

Net weight

0.13 Kilogram

Volume

0.457 Liter

EAN

5702428939348

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-20 °F

Approval

CE; TÜV

Burst pressure [bar]

375 bar

Burst pressure [psig]

5440 psig

Cable length [in]

59.06 in

Cable length [m]

1.5 m

Cable type

AWG18

CE evaluated

Yes

China RoHS compliance

Out of scope

Contact function

SPST(NC)

Contact rating

AC=6 A, 250 V

Contain batteries

No

Electrical connection

Cable

Enclosure rating IP

IP65

EU RoHS compliance

Out of scope

Higher activ. pressure [bar]

110 bar

Higher activ. pressure [psi]

1595 psi

Housing

Epoxy type

Lower activ. pressure [bar]

80 bar

Lower activ. pressure [psi]

1160 psi

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

165 bar

Max. Working Pressure [psig]

2393 psig

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

210 °F

Medium temperature range [°F] [min]

-20 °F

Mounting

Vertical +/- 45º

Oil free refrigerants

R134a; R513A

Packing format

Industrial pack

Pressure connection notes

Cu-tube (tip=7mm)

Pressure connection size [mm]

6.35 mm

Pressure connection type

Solder, ODM

Pressure range category

High pressure

Product accessories

Switches accessories

Product group

Switches and thermostats

Product Name Description

Cartridge pressure switch

Quantity per packing format

20 pc

REACH Candidate List substances

No

Refrigerants

R744

Reset function

Auto

Serviceable

No

Specification key

CCB-2UB04W

Type

CCB

UK RoHS compliance

Out of scope

Wire colour

Black
