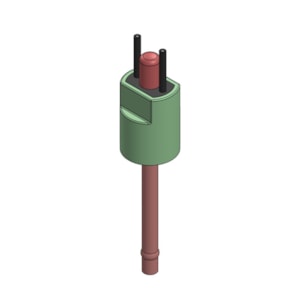

CÔNG TẮC ÁP SUẤT DANFOSS ACB, 38.7bar, 33.3bar - C/N 061F9762

Gross weight

0.084 Kilogram

Net weight

0.08 Kilogram

Volume

0.228 Liter

EAN

5702428509572

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-20 °F

Approval

C UL US UL873; CE 0035; TÜV

Burst pressure [bar]

200 bar

Burst pressure [psig]

2900 psig

Cable length [in]

39.37 in

Cable length [m]

1 m

Cable type

AWG18

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Contact function

SPST(NC)

Contact rating

AC=6 A, 250 V

Contain batteries

No

Electrical connection

Cable

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Higher activ. pressure [bar]

38.7 bar

Higher activ. pressure [psi]

561 psi

Housing

Epoxy type

Lower activ. pressure [bar]

33.3 bar

Lower activ. pressure [psi]

483 psi

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

45 bar

Max. Working Pressure [psig]

653 psig

Medium temperature range [°C] [max]

135 °C

Medium temperature range [°C] [min]

-55 °C

Medium temperature range [°F] [max]

275 °F

Medium temperature range [°F] [min]

-70 °F

Mounting

Vertical +/- 45º

Oil free refrigerants

R134a; R513A

Packing format

Industrial pack

Pressure connection notes

Cu-tube (tip=3mm)

Pressure connection size

1/4 in

Pressure connection size [mm]

6.35 mm

Pressure connection type

Solder, ODM

Pressure range category

High pressure

Product accessories

Switches accessories

Product group

Switches and thermostats

Product Name Description

Cartridge pressure switch

Quantity per packing format

100 pc

REACH Candidate List substances

No

Refrigerants

R125; R134a; R22; R404A; R407C; R407H; R410A; R438A; R448A; R449A; R452A; R513A

Reset function

Manual

SCIP dossier product name

ACB/LCB, Cartridge pressure switch, solder connection

Serviceable

No

Specification key

ACB-2UB1220MW

Type

ACB

UK RoHS compliance

Yes with exemptions

UL approved refrigerants

R125; R134a; R22; R404A; R407C; R407H; R410A; R438A; R448A; R449A; R452A; R513A

UL evaluated

Yes

Wire colour

Yellow
