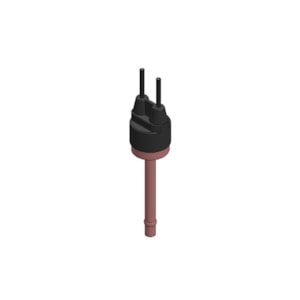

CÔNG TẮC ÁP SUẤT DANFOSS ACB, 8.8bar, 6.6bar - C/N 061F8925

Gross weight

0.127 Kilogram

Net weight

0.121 Kilogram

Volume

0.46 Liter

EAN

5702428510264

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-20 °F

Approval

C UL US UL873; CE 0035; TÜV

Burst pressure [bar]

200 bar

Burst pressure [psig]

2900 psig

Cable length [in]

118.11 in

Cable length [m]

3 m

Cable type

AWG18

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Contact function

SPST(NO)

Contact rating

DC=0.05 A, 12 - 24 V

Contain batteries

No

Electrical connection

Cable

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Higher activ. pressure [bar]

8.8 bar

Higher activ. pressure [psi]

128 psi

Housing

Regular hot-melt

Lower activ. pressure [bar]

6.6 bar

Lower activ. pressure [psi]

96 psi

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

45 bar

Max. Working Pressure [psig]

653 psig

Medium temperature range [°C] [max]

135 °C

Medium temperature range [°C] [min]

-55 °C

Medium temperature range [°F] [max]

275 °F

Medium temperature range [°F] [min]

-70 °F

Mounting

Vertical +/- 45º

Oil free refrigerants

R134a; R513A

Packing format

Industrial pack

Pressure connection notes

Cu-tube (tip=7mm)

Pressure connection size [mm]

6 mm

Pressure connection type

Solder, ODM

Pressure range category

High pressure

Product accessories

Switches accessories

Product group

Switches and thermostats

Product Name Description

Cartridge pressure switch

Quantity per packing format

50 pc

REACH Candidate List substances

No

Refrigerants

R125; R134a; R22; R404A; R407C; R407H; R410A; R438A; R448A; R449A; R452A; R513A

Reset function

Auto

SCIP dossier product name

ACB/LCB, Cartridge pressure switch, solder connection

Serviceable

No

Specification key

ACB-4UA44W

Type

ACB

UK RoHS compliance

Yes with exemptions

UL approved refrigerants

R125; R134a; R22; R404A; R407C; R407H; R410A; R438A; R448A; R449A; R452A; R513A

UL evaluated

Yes

Wire colour

Black
