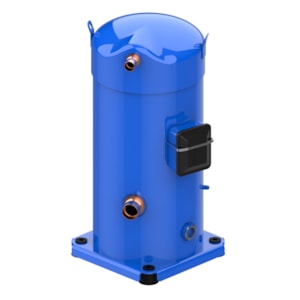

MÁY NÉN DANFOSS SM161T4VC - C/N SM161-4VAI

Gross weight

100 Kilogram

Net weight

88 Kilogram

Volume

590.63 Liter

EAN

5702428583008

Approval

CE; UL; UKCA

Brand technique

Scroll compressor

Capacity control

Fixed speed

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Colour

Blue

Compressor power supply [V]

380-415/3/50 460/3/60

Configuration code

Single

Connection type

Brazed

Contain batteries

No

Description

SM161-4

Diameter [mm]

266 mm

Discharge connection height [mm]

556 mm

Discharge connection pipe size [in]

7/8 in

Discharge connection size [in]

7/8 in

Drawing number

8551106b

Economizer

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

7(c)-I; 6(a); 6(a)-I; 6(c); 7(a); 8(b)

Factory HP [bar]

33 bar

Factory LP [bar]

25 bar

Family

SM

Fitting standard

ODF

Frequency [Hz]

50/60

Gauge port HP

None

Gauge port LP

Schrader

Glass mounting

Threaded

Glass torque [Nm]

50 N-m

GP LP torque [Nm]

15 N-m

High Side TS Max

150 °C

High Side TS Min

-35 °C

High Side Volume

1.6 L

High value of nominal voltage at 50Hz [V]

400 V

High value of nominal voltage at 60Hz [V]

460 V

High value of voltage range at 50Hz [V]

440 V

High value of voltage range at 60Hz [V]

506 V

IP protection class

IP54 (with cable gland)

Low Side TS Max

63 °C

Low Side TS Min

-35 °C

Low Side Volume

14.7 L

Low value of nominal voltage at 50Hz [V]

380 V

Low value of nominal voltage at 60Hz [V]

460 V

Low value of voltage range at 50Hz [V]

342 V

Low value of voltage range at 60Hz [V]

414 V

LRA

145 A

Max pressure (PS) - high side

30.2 bar

Max pressure (PS) - low side

25 bar

Maximum Operating Current [MOC]

31 A

MCC

32 A

Model number

SM161T4VC

Motor protection

Internal overload protector

Mounting torque [Nm]

21 N-m

Network power supply [V/Ph/Hz]

380-415/3/50 460/3/60

Number of starts per hour [Max]

12

Oil charge [L]

3.6 L

Oil equalization

3/8'' flare SAE

Oil equalization torque [Nm]

48 N-m

Oil reference

160P

Oil type

Mineral

Packaging height [mm]

671 mm

Packaging length [mm]

470 mm

Packaging weight [Kg]

671 kg

Packaging width [mm]

370 mm

Packing format

Single pack

Packing quantity

1

Phase

3

Power connections

Screw 4.8 mm

Product group

Hermetic compressors

Product Name Description

Scroll compressor SM

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerant charge [kg] [Max]

12.5 kg

Refrigerants

R22

RLA

22.9 A

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

SCIP dossier no.

2e9b0776-281a-4205-bf1f-dbeea526b31d

SCIP dossier product name

SM084/SM090/SM100/SM110/SM120/SM148/SM161/SZ084/SZ090/SZ100/SZ110/SZ120/SZ148/SZ161

Segment usage

Air conditioning

Shipped instructions

Installation instructions

Shipped mounting

Mounting kit with grommets, bolts, nuts, sleeves and washers

Shipped oil

Initial oil charge

Suction connection height [mm]

180 mm

Suction connection material

-

Suction connection pipe size [in]

1 3/8 in

Suction connection size [in]

1 3/8 in

Swept volume [cm3]

216.6 cm³

Technology

Scroll

Test dif [bar] [Max]

24 bar

Test HP [bar] [Max]

32 bar

Test LP [bar] [Max]

25 bar

Torque earth [Nm]

2 N-m

Torque power [Nm]

3 N-m

Total height [mm]

591 mm

Type

SM161

U.S. EPA label

For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.

UK RoHS compliance

Yes with exemptions

UK RoHS exemption clause

19; 21; 24; 12; 13; 18

UL evaluated

Yes

Viscosity [cP]

32 cP

Winding resistance for three-phase compressors with identical windings [Ohm]

0.94 Ohm
