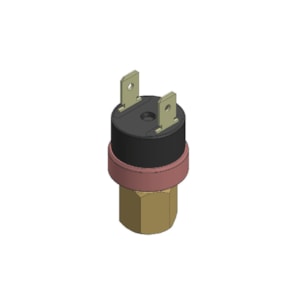

CÔNG TẮC ÁP SUẤT DANFOSS ACB, 28bar, 21bar - C/N 061F8700

Gross weight

0.043 Kilogram

Net weight

0.024 Kilogram

Volume

0.382 Liter

EAN

5702428518796

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-20 °F

Approval

C UL US UL873; CE; CE 0035; PED; TÜV

Burst pressure [bar]

200 bar

Burst pressure [psig]

2900 psig

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Contact function

SPST(NC)

Contact rating

AC=6 A, 250 V

Contain batteries

No

Electrical connection

Spade connectors

Enclosure rating IP

IP40

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Higher activ. pressure [bar]

28 bar

Higher activ. pressure [psi]

406 psi

Housing

Regular

Lower activ. pressure [bar]

21 bar

Lower activ. pressure [psi]

305 psi

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

45 bar

Max. Working Pressure [psig]

653 psig

Medium temperature range [°C] [max]

135 °C

Medium temperature range [°C] [min]

-55 °C

Medium temperature range [°F] [max]

275 °F

Medium temperature range [°F] [min]

-70 °F

Mounting

Vertical +/- 45º

Oil free refrigerants

R134a; R513A

Packing format

Industrial pack

Pressure connection notes

Deflator

Pressure connection size

1/4 in

Pressure connection type

Flare

Pressure Male/Female

Female

Pressure range category

High pressure

Product accessories

Switches accessories

Product group

Switches and thermostats

Product Name Description

Cartridge pressure switch

Quantity per packing format

50 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R125; R134a; R22; R404A; R407C; R407H; R410A; R438A; R448A; R449A; R452A; R513A

Reset function

Auto

SCIP dossier no.

3214dac9-e7f5-4553-abfe-56ba718eab3c

SCIP dossier product name

ACB/LCB, Cartridge pressure switch, flare connection

Serviceable

No

Specification key

ACB-2UB200

Type

ACB

UK RoHS compliance

Yes with exemptions

UL approved refrigerants

R125; R134a ; R22; R404A; R407C; R407H; R410A; R438A; R448A; R449A; R452A; R513A

UL evaluated

Yes
