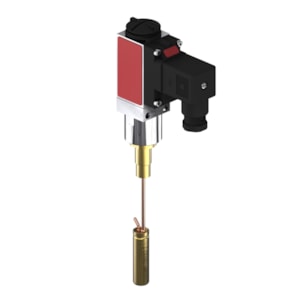

CÔNG TẮC NHIỆT ĐỘ DANFOSS MBC 8100 - C/N 061B811666

Gross weight

0.59 Kilogram

Net weight

0.34 Kilogram

Volume

3.48 Liter

EAN

5702423188185

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ABS ; BV ; CCC ; CCS ; CE ; DNV ; EAC ; GL ; KRS ; LLC CDC EURO-TYSK ; LR ; LVD ; NKK ; RINA ; RMRS ; RoHS ; RoHS China ; TYSK

CE evaluated

Yes

Charge type

Adsorption

China RoHS compliance

Yes

Connection for pocket or hose

M 18 x 1.5

Contact function

SPDT

Contact rating

AC15=0.5 A, 250 V; DC13=12 W, 125 V

Contain batteries

No

Differential (FS) [K]

5 K

Differential type

Fixed (max. value)

Electrical conn. Male/Female

Female

Electrical connection standard

EN 175301-803-A

Electrical spec. standard

EN 60947-5

Enclosure rating IP

IP65

EU RoHS compliance

Out of scope

Max. sensor temperature [°C]

220 °C

Max. sensor temperature [°F]

428 °F

Packing format

Multi pack

Product accessories

Switches accessories

Product description

Thermostat

Product group

Switches and thermostats

Product Name Description

Thermostat

Quantity per packing format

6 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Reset function

Auto

SCIP dossier no.

78250f8e-5849-44ad-ae3b-a65731351f9b

Sensor pocket length min. [in]

4 3/8 in

Sensor pocket length min. [mm]

110 mm

Sensor size (Ø x L) [in]

1/2 x 2 in

Sensor size (Ø x L) [mm]

13 x 50 mm

Sensor type

Rigid sensor

Serviceable

No

Specification key

2411-0A00110

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

70 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

158 °F

Type

MBC 8100

UK RoHS compliance

Out of scope
