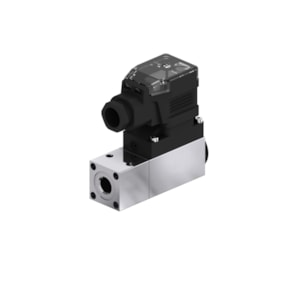

CÔNG TẮC ÁP SUẤT DANFOSS MBC 5100 - C/N 061B510766

Gross weight

0.304 Kilogram

Net weight

0.257 Kilogram

Volume

0.647 Liter

EAN

5702428529815

Alarm Signal

Falling

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ABS ; BV ; CCC ; CCS ; CE ; CMIM ; DNV ; EAC ; GL ; KRS ; LLC CDC EURO-TYSK ; LR ; NKK ; RINA ; RMRS

Burst pressure [bar]

1200 bar

CE evaluated

Yes

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

AC15=0.5 A, 250 V; DC13=12 W, 125 V

Contain batteries

No

Electrical conn. Male/Female

Female

Electrical connection

DIN-plug

Electrical connection size

Pg 11

Electrical connection standard

EN 175301-803-A

Electrical spec. standard

EN 60947-5

Enclosure rating IP

IP65

EU RoHS compliance

Out of scope

Factory setting [bar]

17 bar

Factory setting [MPa]

1.7 MPa

Max. test pressure [bar] Pe

600 bar

Max. test pressure [psig]

8702 psig

Max. Working Pressure [bar]

600 bar

Max. Working Pressure [psig]

8700 psig

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Pressure sensing element

Piston

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product Name Description

Pressure switch

Quantity per packing format

32 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Regulation range [bar] Pe [max]

70 bar

Regulation range [bar] Pe [min]

5 bar

Regulation range [MPa] Pe [max]

7 MPa

Regulation range [MPa] Pe [min]

0.5 MPa

SCIP dossier no.

c9549e84-c103-45b0-86ec-6021ce3385c8

Serviceable

No

Specification key

XX51-1CB04

Type

MBC 5100

UK RoHS compliance

Out of scope
