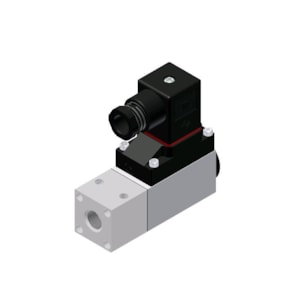

CÔNG TẮC ÁP SUẤT DANFOSS MBC 5000 - C/N 061B503266

Gross weight

0.309 Kilogram

Net weight

0.21 Kilogram

Volume

0.647 Liter

EAN

5702428833585

Ambient temperature range [°C] [max]

60 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

140 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CCC; CE; EAC; LLC CDC EURO-TYSK; LVD; RoHS; RoHS China

Burst pressure [bar]

1200 bar

CE evaluated

Yes

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

120/250Vac, 1,16 A Pilot duty; 120/250Vac, 6A resistive; 120/250Vac,2,9FLA,17,4LRA

Contain batteries

No

Diff.@Max. range setting [bar]

30 bar

Diff.@Min. range setting [bar]

15 bar

Electrical conn. Male/Female

Female

Electrical connection

DIN-plug

Electrical connection size

Pg 11

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Out of scope

Max. test pressure [bar] Pe

300 bar

Max. test pressure [psig]

4351 psig

Max. Working Pressure [bar]

300 bar

Max. Working Pressure [psig]

4350 psig

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Pressure sensing element

Piston

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product Name Description

Pressure switch

Quantity per packing format

32 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Regulation range [bar] Pe [max]

160 bar

Regulation range [bar] Pe [min]

16 bar

Regulation range [MPa] Pe [max]

16 MPa

Regulation range [MPa] Pe [min]

1.6 MPa

Reset function

Auto

SCIP dossier no.

c9549e84-c103-45b0-86ec-6021ce3385c8

Serviceable

No

Specification key

5251-1CB04

Type

MBC 5000

UK RoHS compliance

Out of scope

UL approval file name

E31024
