CÔNG TẮC ÁP SUẤT DANFOSS MBC 5000 - C/N 061B501766

Mã sản phẩm: 061B501766

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

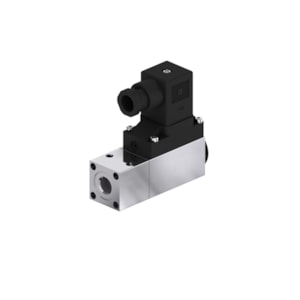

CÔNG TẮC ÁP SUẤT DANFOSS MBC 5000 - C/N 061B501766

Product details

Alarm Signal	Falling
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CCC; CE; EAC; LLC CDC EURO-TYSK; LVD; RoHS; RoHS China
Burst pressure [bar]	1200 bar
CE evaluated	Yes
China RoHS compliance	Yes
Contact function	SPDT
Contact rating	AC15=0.5 A, 250 V; DC13=12 W, 125 V
Contain batteries	No
Electrical conn. Male/Female	Female
Electrical connection	DIN-plug
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Electrical spec. standard	EN 60947-5
Enclosure rating IP	IP65
EU RoHS compliance	Out of scope
Factory setting [bar]	3 bar
Factory setting [MPa]	0.3 MPa
Further information	Medium oil
Max. test pressure [bar] Pe	600 bar
Max. test pressure [psig]	8702 psig
Max. Working Pressure [bar]	600 bar
Max. Working Pressure [psig]	8700 psig
Packing format	Multi pack
Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Female
Pressure sensing element	Piston
Product accessories	Switches accessories
Product description	Pressure Switch
Product group	Switches and thermostats
Product Name Description	Pressure switch
Quantity per packing format	32 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Reset function	Auto
SCIP dossier no.	c9549e84-c103-45b0-86ec-6021ce3385c8
Serviceable	No
Specification key	XX51-1CB04
Type	MBC 5000
UK RoHS compliance	Out of scope
