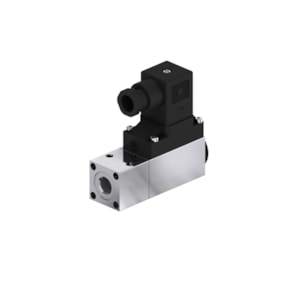

CÔNG TẮC ÁP SUẤT DANFOSS MBC 5100 - C/N 061B103066

Gross weight

0.298 Kilogram

Net weight

0.248 Kilogram

Volume

0.647 Liter

EAN

5702423213658

Alarm Signal

Falling

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-10 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

14 °F

Approval

ABS ; BV ; CCC ; CCS ; CE ; CMIM ; DNV ; EAC ; GL ; KRS ; LLC CDC EURO-TYSK ; LR ; LVD ; NKK ; RINA ; RMRS ; RoHS ; RoHS China ; TYSK

Burst pressure [bar]

300 bar

CE evaluated

Yes

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

AC15=0.5 A, 250 V; DC13=12 W, 125 V

Contain batteries

No

Diff.@Max. range setting [bar]

2.5 bar

Diff.@Min. range setting [bar]

1 bar

Electrical conn. Male/Female

Female

Electrical connection

DIN-plug

Electrical connection size

Pg 11

Electrical connection standard

EN 175301-803-A

Electrical spec. standard

EN 60947-5

Enclosure rating IP

IP65

EU RoHS compliance

Out of scope

Factory setting [bar]

17 bar

Factory setting [MPa]

1.7 MPa

Max. test pressure [bar] Pe

150 bar

Max. test pressure [psig]

2176 psig

Max. Working Pressure [bar]

150 bar

Max. Working Pressure [psig]

2175 psig

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Pressure sensing element

Diaphragm

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product Name Description

Pressure switch

Quantity per packing format

32 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Regulation range [bar] Pe [max]

20 bar

Regulation range [bar] Pe [min]

5 bar

Regulation range [MPa] Pe [max]

2 MPa

Regulation range [MPa] Pe [min]

0.5 MPa

Reset function

Auto

SCIP dossier no.

c9549e84-c103-45b0-86ec-6021ce3385c8

Serviceable

No

Specification key

3231-1CB04

Type

MBC 5100

UK RoHS compliance

Out of scope
