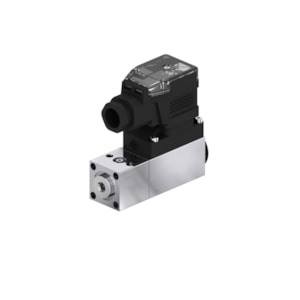

CÔNG TẮC ÁP SUẤT DANFOSS MBC 5100 - C/N 061B023366

Gross weight

0.324 Kilogram

Net weight

0.28 Kilogram

Volume

0.647 Liter

EAN

5702428529778

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ABS ; BV ; CCC ; CCS ; CE ; CMIM ; DNV ; EAC ; GL ; KRS ; LLC CDC EURO-TYSK ; LR ; LVD ; NKK ; RINA ; RMRS ; RoHS ; RoHS China ; TYSK

Burst pressure [bar]

90 bar

CE evaluated

Yes

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

AC15=0.5 A, 250 V; DC13=12 W, 125 V

Contain batteries

No

Diff.@Max. range setting [bar]

2 bar

Diff.@Min. range setting [bar]

0.9 bar

Electrical conn. Male/Female

Female

Electrical connection

DIN-plug

Electrical connection size

M20

Electrical connection standard

EN 175301-803-A

Electrical spec. standard

EN 60947-5

Enclosure rating IP

IP65

EU RoHS compliance

Out of scope

Max. test pressure [bar] Pe

45 bar

Max. test pressure [psig]

653 psig

Max. Working Pressure [bar]

45 bar

Max. Working Pressure [psig]

655 psig

Packing format

Multi pack

Pressure connection notes

With flange

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product Name Description

Pressure switch

Quantity per packing format

32 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Regulation range [bar] Pe [max]

30 bar

Regulation range [bar] Pe [min]

5 bar

Regulation range [MPa] Pe [max]

3 MPa

Regulation range [MPa] Pe [min]

0.5 MPa

Reset function

Auto

SCIP dossier no.

c9549e84-c103-45b0-86ec-6021ce3385c8

Serviceable

No

Specification key

3421-XDB04

Type

MBC 5100

UK RoHS compliance

Out of scope
