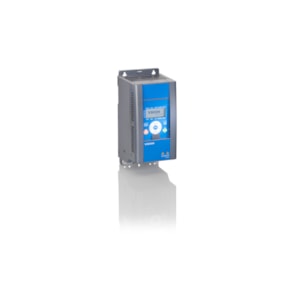

BIẾN TẦN VACON0020-3L-0005-4+EMC2+QPES+DLNL, 1.5KW, 380–480 VAC - C/N 135U9214

Gross weight

1.7 kg

Net weight

0.7 kg

Volume

0 l

EAN

5710108354855

Product View (Switch)

GLBL

Global (Standard)

Product Group

VACON

(VACON) Vacon

Product Range

0020

(0020) Vacon 020

Segment

NONE

(NONE) Vacon 10/20

Customized

+BM25

(+BM25) Vacon0020 product

Regional

-R00

International

Input

-3L

3 Phase AC Input

Voltage

-4

380–480 Vac

Current

-0005

5 Amp

Current Description

4,3 AMP

API Selection

+SM20

API for Vacon0020

E Slot Option Board

+SE00

No Option

Mounting

-DM

Drive Module

Enclosure

+IP20

IP20/UL Open Type

EMC Level

+EMC2

EMC 2 Class

Enclosure Accessory A

+QPES

(+QPES) PE Plate Kit

Enclosure Accessory B

+Q000

(+Q000) No Additional Option

Documentation Language

+DLNL

(+DLNL) Dutch

Documentation level

+DQCK

(+DQCK) Quick Guide

Label Language

+LLUK

(+LLUK) English

SW package

+F0107

(+F0107)VACON 20 SW package

Application

+A0000

(+A0000)No Special Application

Brake

+DBIN

(+DBIN) Brake Chopper

Display Units

+LSSI

(+LSSI)Metric Units of Measure

Frequency Setting

+LS50

50 Hz

Parameter Set

+L0000

(+L0000) No Parameter Set

Shipping Package

+GSCB

Cardboard Box as Shipping pack

UL Approval

+GAUL

(+GAUL) UL Approval

CE Aproval

+GACE

(+GACE) CE Approval

C-tick Approval

+GACT

(+GACT) C-Tick Approval

KC Approval

+GAKC

(+GAKC) KC Approval

Standard Warranty

+WT01

(+WT01) Warranty 12/18 Months

Frame Size

MI02

MI02

Typecode Part 1

70-AC3L00054W02A121BM25

Typecode Part 2

-00056907

Modelcode01

VACON0020-3L-0005-4

Modelcode03

+EMC2+QPES+DLNL

Stockcode part 1

70-AC3L00054W02A121BM25

Stockcode part 2

-00056907

Product Catalog

NO_VIEW

NO VIEW

Salestext

MI02-0005-4+IP20+EMC2

Calculated Net Weight [kg]

0.88

Calculated Gross Weight [kg]

1.16

Motor Power High Overload [kW]

1.5

Dimensions WxHxD [mm]

90 X 195 X 102

Continuous Current (NO) [A]

38

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Help Counter

1

PREFIX AS PART OF STOCKCODE

70-

PREFIX FOR VXS020

VXS020 FRAME TYPE

A

Frame type A

Recommended Plant

ERR01

check if complete

OK

ECCN US

3A999.a

ECCN EU

X.A.I.003
