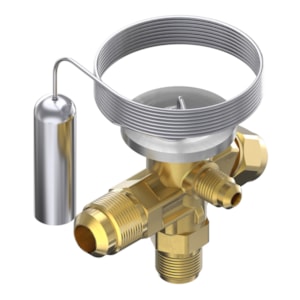

VAN TIẾT LƯU DANFOSS TE 2, R22/R407C - C/N 068Z3227

Gross weight

0.316 Kilogram

Net weight

0.291 Kilogram

Volume

0.489 Liter

EAN

5702422123804

Approval

EAC; LLC CDC TYSK

Body material

Brass

Capillary tube length [in]

59 in

Capillary tube length [mm]

1500 mm

China RoHS compliance

Yes exceed limitations

Connection material

Brass

Direction

Angleway

Equalization connection type

Flare

Equalization size [in]

1/4 in

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(c)

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

2

Identical product

068Z3272

In scope of WEEE and contain batteries

No

Inlet connection type

Flare

Inlet size [in]

3/8 in

Max. Working Pressure [bar]

34 bar

Max. Working Pressure [psig]

500 psig

MOP Point [psig]

MOP 35

MOP Point [°C]

-10 °C

MOP Point [°F]

14 °F

Outlet connection type

Flare

Outlet size [in]

1/2 in

Packing format

Multi pack

Parts included

Bulb strap

Parts Program name

T2/TE2

PED category

Art. 4, par. 3

Pressure equalization

Externally equalized

Product accessories

TXV accessories

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Quantity per packing format

20 pc

Rated cap. cond. Range N [IMP]

OS=10.8 ºF; tcond=100 ºF; tevap=40 ºF; tliq=98 ºF

Rated cap. cond. Range N [SI]

OS=6K; tcond=38 ºC; tevap=4.4 ºC; tliq=37 ºC

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R22/R407C

SCIP dossier no.

c164ed45-f10d-4d73-9eae-355ccb479f4b

SCIP dossier product name

T2 /TE2 - Thermostatic Expansion Valve

Serviceable

TXV spare parts

Static Superheat (SS) [°C]

4 °C

Static Superheat (SS) [°F]

7.2 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

-15 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

5 °F

Temperature range [°F] [min]

-40 °F

Type

TE 2

UA address


UK RoHS compliance

Out of scope
