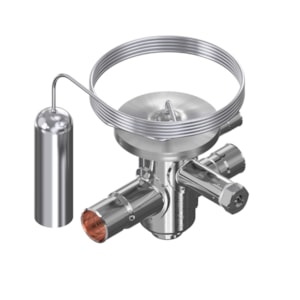

VAN TIẾT LƯU DANFOSS TUBE, R407C - C/N 068U1716

Gross weight

0.176 Kilogram

Net weight

0.159 Kilogram

Volume

0.5 Liter

EAN

5702428045216

Approval

EAC; LLC CDC TYSK; UL

Body material

Stainless steel

Capillary tube length [in]

59 in

Capillary tube length [mm]

1500 mm

China RoHS compliance

Out of scope

Connection material

Bi-metal: Steel/copper

Direction

Straightway

Equalization connection type

Solder, ODF

Equalization size [mm]

6 mm

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(c)

Flow direction

Single-flow

Flow direction indicator

Laser engraved 1-way arrow

Fluid Group

2

In scope of WEEE and contain batteries

No

Inlet connection type

Solder, ODF

Inlet size [mm]

10 mm

Max. Working Pressure [bar]

34 bar

Max. Working Pressure [psig]

500 psig

MOP Point [psig]

MOP 95

MOP Point [°C]

15 °C

MOP Point [°F]

60 °F

Orifice capacities [kW]

11 kW

Orifice capacities [TR]

3.2 TR

Orifice size

8

Outlet connection type

Solder, ODF

Outlet size [mm]

12 mm

Packing format

Industrial pack

Parts included

Bulb strap

PED category

Art. 4, par. 3

Pressure equalization

Externally equalized

Product accessories

TXV accessories

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Quantity per packing format

45 pc

Rated cap. cond. Range N [IMP]

OS=7.2 ºF; tcond=100 ºF; tevap=40 ºF; tliq=98 ºF

Rated cap. cond. Range N [SI]

OS=4K; tcond=38 ºC; tevap=4.4 ºC; tliq=37 ºC

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R407C

SCIP dossier no.

07795324-de66-41b2-9761-afe6640e393c

SCIP dossier product name

TU/TC - Thermostatic expansion valve

Serviceable

No

Static Superheat (SS) [°C]

4 °C

Static Superheat (SS) [°F]

7.2 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

10 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

50 °F

Temperature range [°F] [min]

-40 °F

Type

TUBE

UK RoHS compliance

Out of scope

UL approved refrigerants

R407C

UL evaluated

Yes
