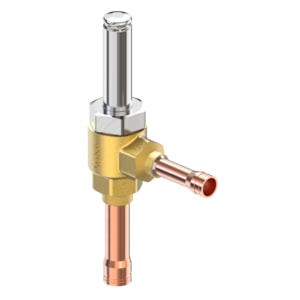

VAN TIẾT LƯU ĐIỆN DANFOSS AKV 10PS7 - C/N 068F4047

Gross weight

0.39 Kilogram

Net weight

0.266 Kilogram

Volume

1.155 Liter

EAN

5702428934169

Actuator system [mm]

13.5 mm

Ambient temperature

-50 - 50 °C

Ambient temperature range [°F] [max]

120 °F

Ambient temperature range [°F] [min]

-58 °F

Approval

C UL US LISTED; EAC; LLC CDC EURO-TYSK

China RoHS compliance

Out of scope

Coil

No

Cv value [gal/min]

0.24 gal/min

Direction

Angleway

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(c)

Function

NC

In scope of WEEE and contain batteries

No

Inlet connection type

Solder, ODF

Inlet size [in]

1/2 in

Kv value [m³/h]

0.2 m³/h

Manual operation option

No

Max. Working Pressure [bar]

90 bar

Max. Working Pressure [psig]

1305 psig

Medium temperature range [°C] [max]

60 °C

Medium temperature range [°C] [min]

-50 °C

Medium temperature range [°F] [max]

140 °F

Medium temperature range [°F] [min]

-58 °F

MinODP [bar]

0.1 bar

MinODP [psi]

1.45 psi

MOPD[bar/psi]

55 bar/798 psi Coil Dependent

Orifice size [mm]

3 mm

Outlet connection type

Solder, ODF

Outlet size [in]

5/8 in

Packing format

Multi pack

Product accessories

Electric valve accessories

Product group

Expansion valves

Product Name Description

Electric expansion valve

Quantity per packing format

18 pc

Rated capacity R744 [kW]

16 kW

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R1233zd(E); R1234yf; R1234ze(E); R1270; R134a; R22; R23; R290; R32; R404A; R407A; R407C; R407F; R407H; R410A; R422B; R422D; R438A; R444B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R469A; R507A; R513A; R513B; R515A; R515B; R516A; R600; R600a; R744

SCIP dossier no.

42978228-2cb2-4cc8-8e34-6ceb39385da

SCIP dossier product name

AKV 10/AKV 10P/AKVH 10/AKVO 10/EVRP 3

Serviceable

Electric valve spare parts

Type

AKV 10PS7

Type designation

Electric expansion valve

UK RoHS compliance

Out of scope

UL approved refrigerants

R1233zd(E); R134a; R22; R23; R404A; R407A; R407C; R407F ; R407H; R410A; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R454A; R463A; R507A; R513A; R513B; R515A; R515B; R516A; R744

UL evaluated

Yes
